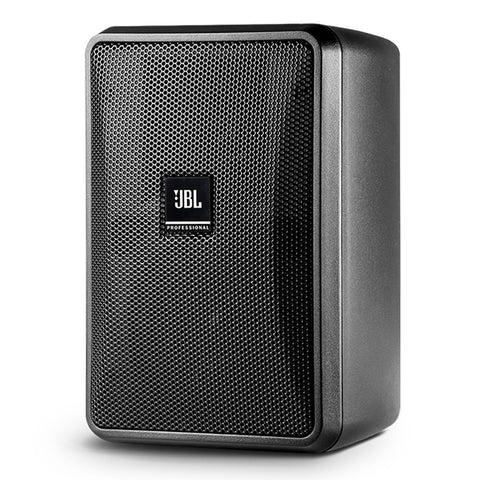

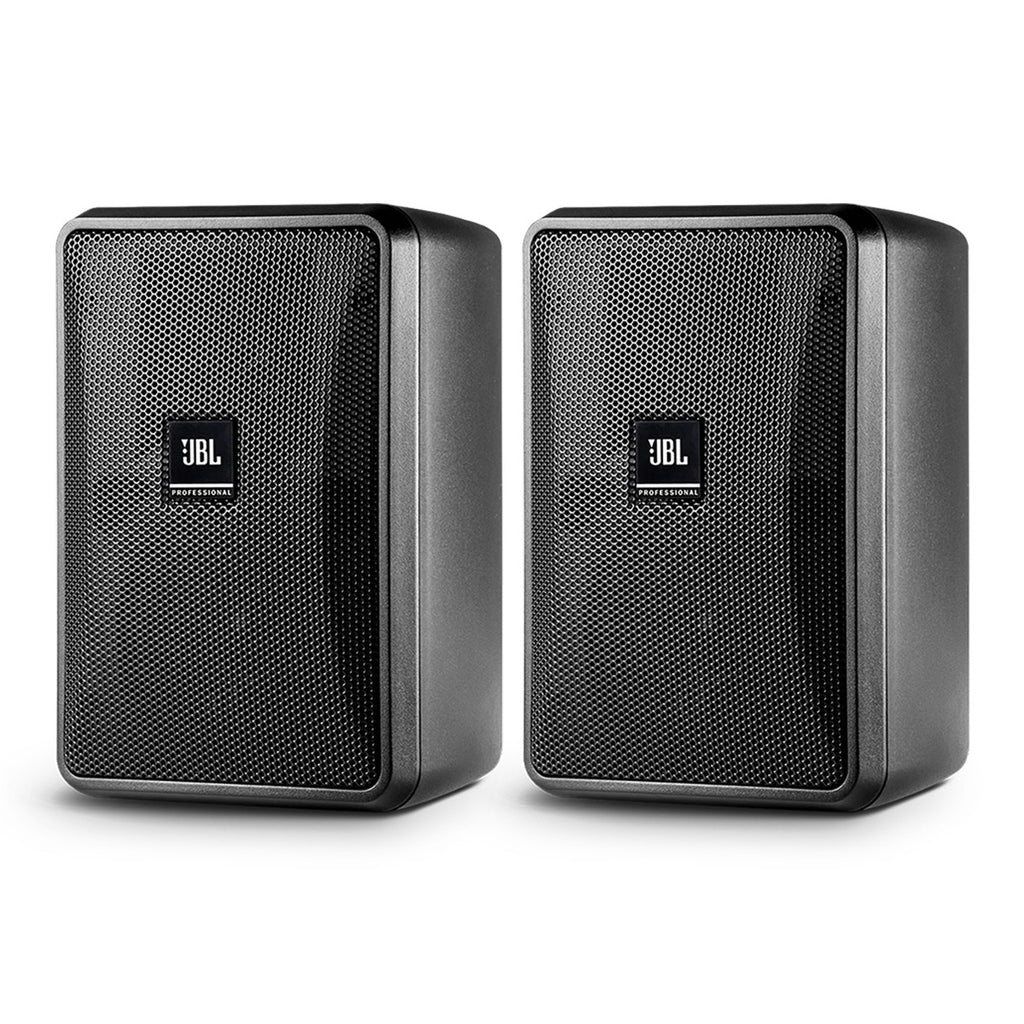

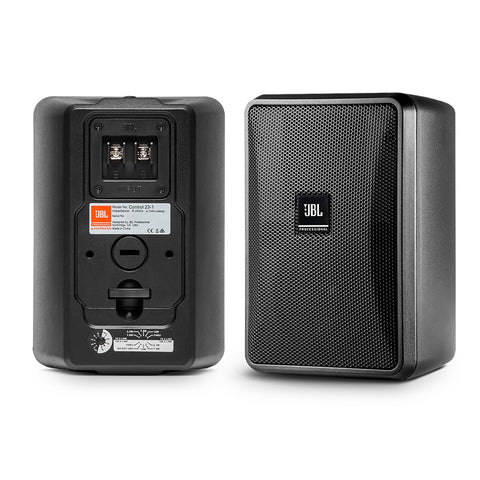

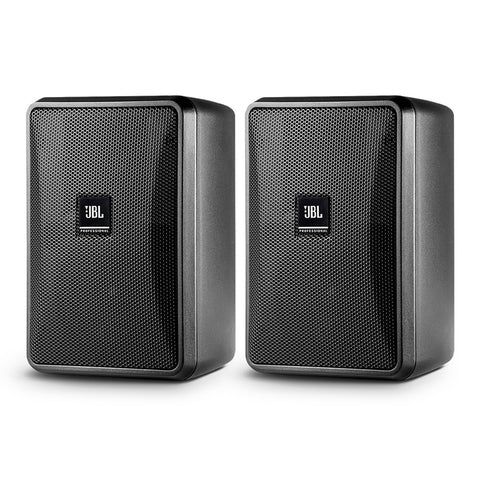

JBL Professional Control 23-1 2-Way 3 Inch Indoor/Outdoor Speaker - Pair (Black)
$350.00
Regular price
$420.00
Save
$70.00
(16%)
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
The Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1 an excellent choice for a wide variety of applications, including retail, restaurants, hospitality, education & other compact indoor/outdoor music or paging applications.
Features
3” Woofer with Woven Fiberglass Cone
½” PEI Diaphragm Tweeter with Fluid Cooling
Built-in InvisiBall® Mounting Hardware
Wide 100° x 100° Coverage
Weather Resistant Enclosure & Transducers
Built-In 15 Watt 70V/100V Multi-Tap Transformer
SPECIFICATIONS
General
Frequency Range (-10 dB): 70 Hz to 20 kHz
Frequency Response (+/-3 dB): 95 Hz - 19 kHz
Power Rating: 100W Continuous Program (2 hrs) ; 50 W (200W peak), Continuous Pink Noise (2 hrs) ; 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 17.2 V RMS (2 hrs), 34.4 V peak
Maximum SPL: 103 dB ave. Continuous Pink Noise (109 dB peak)
Directivity Index (DI): 7.2 dB (averaged 1kHz – 16kHz)
Nominal Impedance: 8 ohms (THRU setting)
Crossover Type: 2nd order low-pass, 2nd order high-pass
Transformer Taps: 70V = 15W, 7.5W, 3.7W, 1.8W ; 100V = 15W, 7.5W, 3.7W ; Insertion Loss <0.43 dB at any tap setting ; Thru Setting = 8Ω nominal
Recommended Protective High-Pass: 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings) .
Low Frequency Driver: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
High Frequency Driver: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Dimensions
Dimensions (H x W x D): 7.9 x 5.6 x 4.4” ; (5.6” deep total when mounted on InvisiBall wall-mount bracket)
Net Weight: 4.0 lbs.
Design
Enclosure Material: High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Installation
InvisiBall™ wall-mounting system included.
Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket.
Secondary safety attachment loop point on back panel
Environmental
IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.)
Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV.
Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray.
Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.

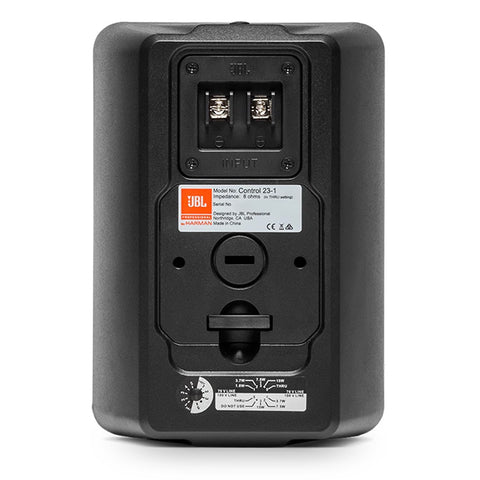

Termination
Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers.
Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2).
Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating: ROHS-compliant; Transformer UL Recognized per UL1876
