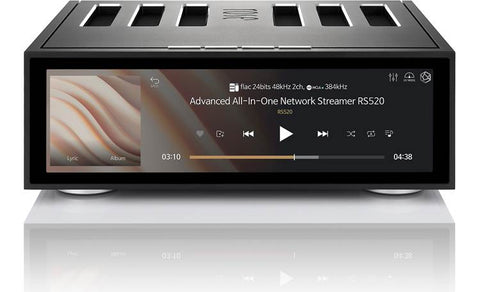

The RS520 just might be the highest value product in the HiFi Rose 2023 line-up. It is an all-in-one product featuring a built-in network player / streamer, DAC, and a powerful, 250 watt per channel integrated amplifier. It is equipped with the ES9038PRO DAC, the flagship DAC chip of ESS technology. The audio quality when streaming services like Qobuz has to be heard to be believed. The Class AD amplifier module is a newly developed GaN-FET design, and is significantly more musical than previous Class D designs. The Gan-FET topology is faster, more efficient, and even cooler-running than prior Class D designs. RS520 is a complete audio solution, an advanced all-in-one amplifier / network streamer that will satisfy even the most demanding music listeners.
Unchangeable Value
The design of the RS520 focused on values that did not change over time. A refined design that will not change over time and a bold ventilation hole for hear dissipation represent a gentleman with both functionality and enterprising appearance.
Integral Aluminum Housing
The housing of the RS520, which is made with generous use of high-durability 6000 class aluminum material. It is manufactured by an all-in-one process in which four sides are produced as one part. The all-in-one manufacturing process is the most ideal method to fundamentally block vibrations that may occur between separated parts. Significantly reducing noise waves that can affect sound quality.
12.6-Inch Wide LCD Touchscreen
Visible audio is emphasized using HiFi ROSE's spacious, wide-viewing-angle multi-touch LCD screen. With a size of 309*82.9 (mm) and a 1920*515 resolution LCD panel. You can enjoy a smooth and clear screen.
FEATURES
- ES9038PRO DAC
- DISCRETE OP AMP
- ACTIVE PFC
- GaN based Class AD Amplifier
- Equalizer
- ROSE Connect Application
- Innovative ROSE OS system
- ROSE Audio Engine
TECHNICAL SPECS
- CPU: Dual-core Cortex-A72 up to 1.8GHz / Quad-core Cortex-A53 up to 1.4GHz
- GPU: Mali-T864 GPU, OpenGL ES2.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11
- Memory: LPDDR4 4GB
- DAC
- ESS Technology, SABRE ES9038PRO
- Resolution: 32bit
- Sampling Rate: 8 to 768kHz
- Native DSD Support: 22.4MHz (DSD64, DSD128, DSD256, DSD512)
- Network: Ethernet 10/100/1000 BASE-T
- Bluetooth: V4.2 (USB Dongle)
- Streaming: Airplay / DLNA / Roon Ready / Spotify Connect / Bluetooth
- Music Service: TIDAL / Qobuz / Apple Music / Bugs / ROSE Tube / Internet Radio / ROSE Podcast
- Audio Input: Optical x 1, Coaxial x 1, Line-In x 1, USB DAC x 1, eARC x 1
- Audio Output: Optical x 1, Coaxial x 1, Preamp-Out x 1
- Video Output: HDMI 2.0 x 1 (up to 3840 x 2160 / 60Hz)
- Media Connection
- File System: NTFS / exFAT / FAT32
- Network Protocol: SMBv1 / FTP / WebDav
- Storage Interface : USB3.0 x 3, SATA x 1
- Audio: MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC, PCM: 8kHz ~ 768kHz(8/16/32bit sample rate), Native DSD: DSD64(2.8MHz) / DSD128(5.6MHz) / DSD256(11.2MHz) / DSD512(22.4MHz)
- Video: ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC, H.264/ AVC, Base/Main/High 10 profile @ level 5.1 High-tier up to 4Kx2K @ 60fpsv
- Power
- Input Voltage: AC100-240V 50/60Hz
- Power Consumption: 150W
- Circuit Breaker: 6A Thermal Circuit Breaker
- Output Power: 250W + 250W @ 8Ω , 4Ω
- Sensitivity
- Line in: 2Vrms
- Pre Out:2Vrms
- Power Bandwith: -3dB - 10Hz ~ 85kHz, 8Ω, 200W
- THD+N
- Pre Out: 0.00033%, 1kHz 600Ω, 2 Vrms
- Speaker: 0.007% @50W, 0.01% @ 100W, 0.1% @ 250W, x2/8Ω
- Damping Factor: 1kHz - 150
- Input Impedance: 100kΩ
- Output Impedance 50mΩ
- Frequency Response: +1/-3dB - 10Hz ~ 83kHz
- Signal-to-Noise Ratio
- Pre Out: 124dB, 1kHz, 600Ω, 2Vrms
- Speaker: 109dB, 1kHz, 8Ω, 250W
- Size (LxWxH): 346 x 328 x 127 mm (13.62 x 12.91 x 5 inches)
- Weight: 8.1 kg
