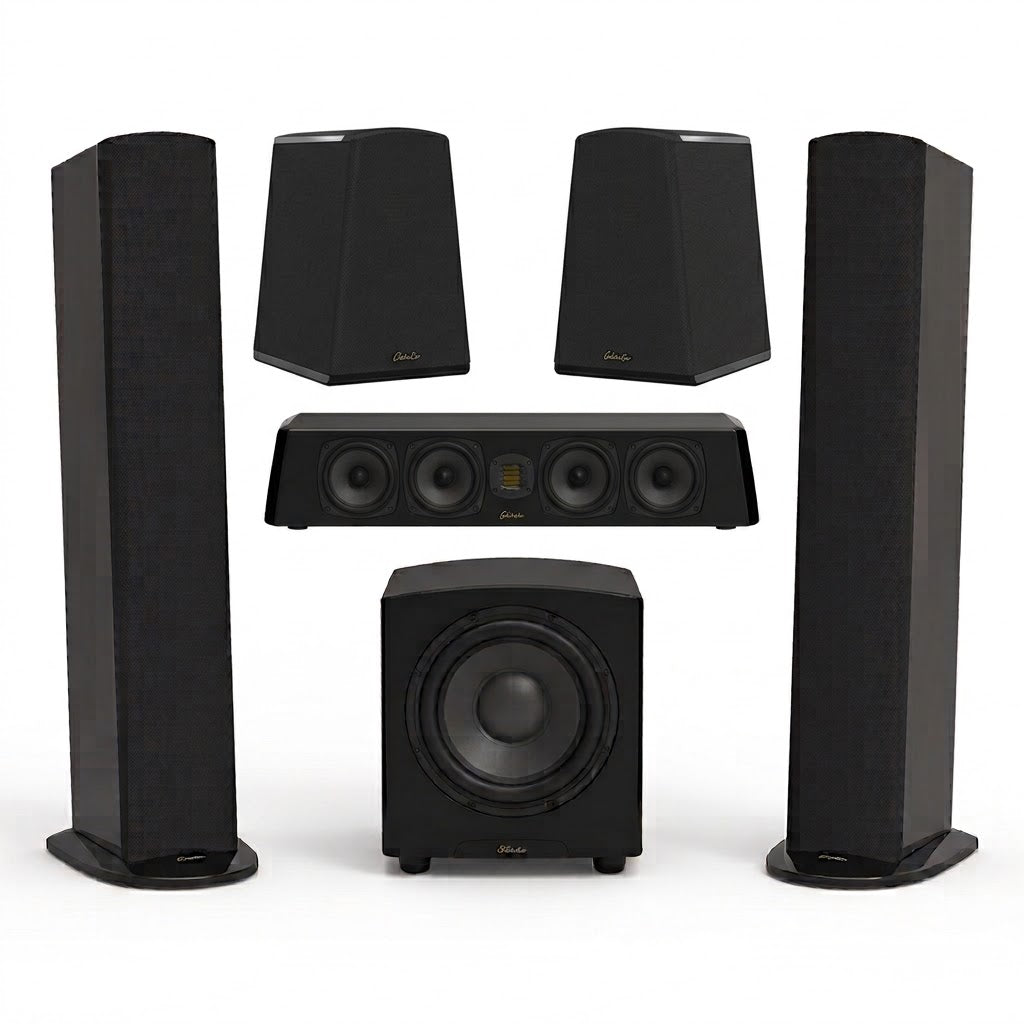

This Package Includes
- (2) Triton Five Floorstanding Tower Loudspeaker - Each
- (2) Aon 3 Ultra-High Performance Bookshelf/Stand-mount Monitor - Each
- ForceField 30 8" 1000W Ultra-Compact Extended-Response Subwoofer
- SuperCenter Reference Center Channel Speaker

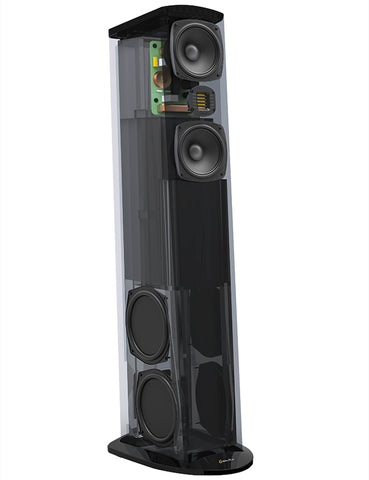

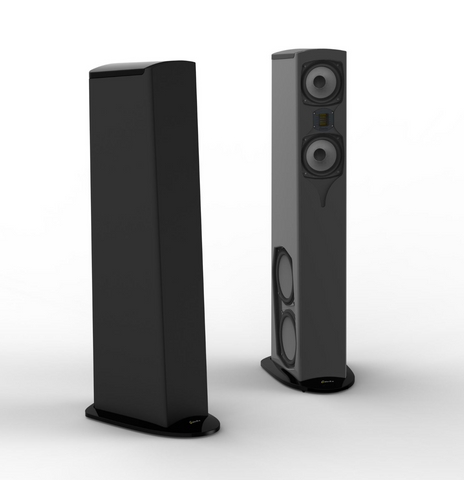

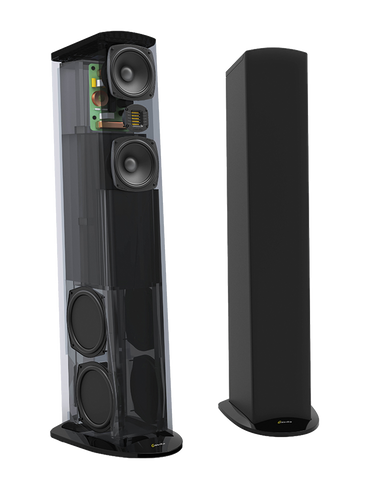

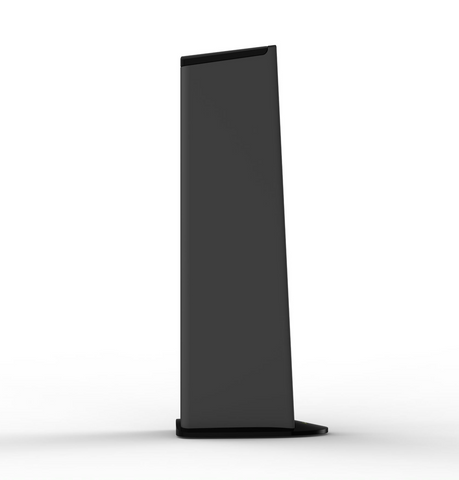

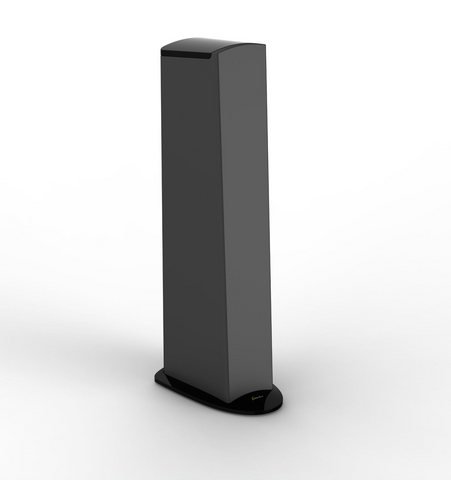

Triton Five Floorstanding Tower Loudspeaker
The Triton Five is a larger version of the Award Winning Triton Seven, with greater dynamic range and even deeper bass extension, plus important refinements carried over from the Triton One development program.
Features
- High-Velocity Folded Ribbon AMT Tweeter
- Dual 6" High-Definition Drivers
- Four 8" Planar Sub-Bass Radiators
- D’Appolito Driver Array
- Acoustically Optimized Cabinet Design
- Wide Dynamic Range & Bass Extension
High-Resolution Sonic Performance
As with all of GoldenEar's Triton Towers, the Triton Five’s high-resolution sonic performance makes it ideal for use in two channel systems of the highest quality, as well as complete multi-channel surround music and home theater systems.
Acoustically Purposeful Cabinet Design
The Five’s unique cabinet shape is both acoustically purposeful as well as strikingly attractive. Its narrow front baffle and stylish rearward rake, in conjunction with the complex crossover, both align the driver array precisely for a coherent wave-launch directed at ear level at the listening position, as well as result in non-parallel front and rear baffles for better control of internal standing waves.
Advanced Driver Technology
A D’Appolito array of two 6″ long-throw midrange/bass drivers surround the same High Velocity Folded Ribbon AMT Tweeter used in all the Triton Towers.
Four Planar Sub-Bass Radiators
The Five incorporates FOUR side-mounted, opposing, inertially-balanced planar back-wave-driven radiators, located on either side of the cabinet down near the floor for optimum coupling to the room.
Exceptional Audio Performance
And the Fives will deliver exceptional performance with moderately priced receivers, while also allowing you to appreciate the subtle qualities of the world’s finest audio components.
Aon 3 Ultra-High Performance Bookshelf/Stand-mount Monitor
The compact, 14-inch-tall GoldenEar Aon 3 Bookshelf Monitor features a 7-inch High-Definition, Multi-Vaned Phase Plug (MVPP™) cast-basket mid-bass driver, paired with two 8-inch inertially balanced, side-mounted low-frequency radiators and GoldenEar’s High-Velocity Folded Ribbon Tweeter (HVFR™) for exceptional audio performance.
Features
- High-Velocity Folded Ribbon Tweeter
- 7" High-Definition Mid/Bass Driver
- Dual 8" Planar Bass Radiators
- Multi-Vaned Phase Plug Design
- Dynamically Balanced Bass Loading
- Non-Parallel Cabinet Wall Design
Ultra-High-Performance Bookshelf Monitor
The Aon 3 is an exceptionally compact, ultra-high-performance bookshelf speaker that was originally developed for use as a near-field monitor in professional mixing applications. The design goal was to produce modestly-sized shelf or stand-mountable speakers that would achieve accurate high-definition sonic reproduction, with superb three-dimensional imaging, comparable to that achieved by GoldenEar’s™ award-winning Triton Two Towers.
Extended Bass Performance
Although it doesn't have quite the awe-inspiring bass of the floor-standing Tritons, great care has been taken, and extensive technology has been incorporated, to ensure that the Aon 3 can deliver a remarkably satisfying listening experience without the need for a separate subwoofer.
High-Definition Cast-Basket Bass/Midrange Driver
The Aon 3 incorporates a GoldenEar-designed cast-basket bass/midrange driver with technology derived from the midrange units developed for the Tritons. The driver features GoldenEar Multi-Vaned Phase Plug (MVPP) Design, Rigid Free-Flow Cast-Basket Chassis, Proprietary Computer Optimized Cone Topology, High-Gauss Magnet Assembly, 1" High-Temperature Kapton Former Voice Coil, and Extremely Extended Resonant-Free Linear Frequency Response Characteristics.
High Velocity Folded Ribbon Tweeter (HVFR™)
The Aon 3 uses the same extraordinary and costly High Velocity Folded Ribbon (HVFR™) high-frequency radiator used in the Tritons. The tweeter diaphragm is a High Temperature Film with High-Power Neodymium Magnets. It squeezes/pressurizes air instead of pushing it, providing greater control, smoother more extended response, vanishingly low distortion, and dramatically improved dynamic range and detail.
Infrasonic Planar Sub-Bass Radiators
The Aon 3 utilizes two side-mounted planar low-frequency radiators in a dynamically balanced configuration in order to properly load the bass/midrange driver for an open, box-less midrange, while also contributing to the Aon 3's remarkably extended bass for such a small enclosure. Pressure-Coupled Loading extends usable bass performance to the infrasonic region and performs like a well-tuned transmission line but with superior transient performance and control.
Acoustically Optimized Cabinet Design
The Aon 3 is of a truncated pyramidal construction, which results in significant performance advantages due to the non-parallel cabinet walls and the reduced baffle area around the tweeter. Aesthetically, the sleek, attractive pyramid-inspired shape combined with appealing design details including piano-gloss black end-caps, results in a beautiful speaker that is both elegant and distinctive.
ForceField 30 8" 1000W Ultra-Compact Extended-Response Subwoofer
The GoldenEar ForceField 30 combines an 8” ultra-long-throw high-output bass driver, a 9” x 11” downward-firing passive radiator, and a 1000W ForceField digital amplifier in a compact, elegant cabinet. Frequency response is 25Hz – 200Hz; Anechoic response: 26Hz – 170Hz (-6dB on axis).
Features
- 8" Ultra-Long-Throw Bass Driver
- 9 x 11" Passive Radiator
- 1000W Peak Digital Amplifier
- DSP-Controlled MOSFET Output Stage
- Variable Low-Pass Filter Controls
- Compact Satin-Black Cabinet Design
Designed For Performance And Beauty
GoldenEar BRX model-inspired curved (extended-surface) top panel better minimizes cabinet resonances. Increased wall thickness prevents absorbing and smearing important bass transient information and impact. Perforated-metal grille affords improved sonic transparency and airflow. Gorgeous and subtle Satin-Black finish.
Robust, Efficient Amplifier
Upgraded electronics platform based on the award-winning SuperSub X/XXL GoldenEar SuperSub-inspired electronics with Analog Devices DSP affords flatter, more extended frequency response for cleaner, deeper bass with lower distortion.
MOSFET output stage and improved implementation result in greater power-transfer efficiency. Necessary subwoofer Level and Low-Pass filter controls allow easy optimization for home theaters, hi-fi setups, and living environments.
Ultra-Long-Throw Sub-Bass Driver
Superior transient performance for natural detail. Computer-optimized ultra-stiff fiber cone. Massive high-gauss magnet assembly.
Quadratic Planar Infrasonic Radiator
Downward-firing pressure-coupled loading extends usable bass performance to the infrasonic region. Approximates the near-perfect impedance of a well-tuned transmission line, but with superior transient performance and control.
Agile, Musical, Room-Filling Bass
The overall result is agile, musical, room-filling bass equally suited to thrilling soundtracks, stirring orchestral pieces, propulsive pop music, and everything in between.

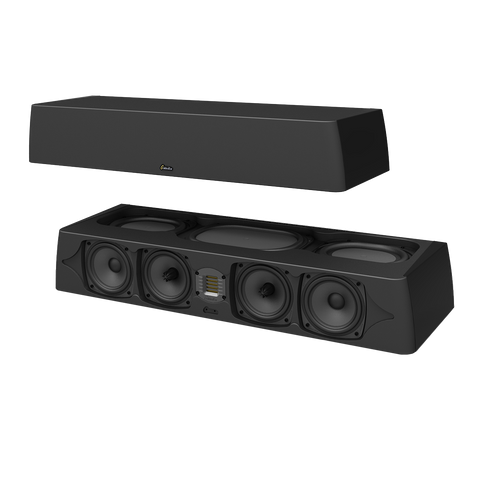

SuperCenter Reference Center Channel Speaker
The top of the SuperCenter lineup is the reference-performance SuperCenter Reference, the perfect match for large GoldenEar home theater systems. Only 35” wide, it includes four 5-1/4″ drivers utilizing the focused-field magnet structure developed for the Triton Reference, the GoldenEar One Reference High-Velocity Folded Ribbon AMT Tweeter, and three planar passive radiators.
Features
- Reference High-Velocity Folded Ribbon Tweeter
- Four 5.25" Cast-Basket Mid/Bass Drivers
- Three Planar Low-Frequency Radiators
- Focused-Field Magnet Structures
- Fully Balanced Linear-Phase Crossover
- Three Separate Internal Chambers
High-Performance Center Channel Speaker
The SuperCenters are high-performance center channel speakers appropriate for the highest quality home theater systems. They are designed to perfectly complement and match GoldenEar's Triton Towers and Aon Bookshelf loudspeakers, both sonically and cosmetically. Their sophisticated industrial design is both attractive and functional, minimizing their apparent size as well as enhancing their acoustic performance.
Reference High-Velocity Folded Ribbon Tweeter
The SuperCenter Reference includes the GoldenEar Reference High Gauss Neodymium High Velocity Folded Ribbon tweeter.
Fully Balanced Linear-Phase Crossover
GoldenEar's unique linear-phase crossover network employs a fully balanced topology which reduces stray capacitances for dramatically improved clarity. It utilizes precision film capacitors and special internal wiring to perfectly blend the drivers for a seamless homogeneous sound.
Three Separate Internal Chambers
There are three separate internal chambers: a larger one in the center which contains two 5-1/4˝ drivers which run up to meet the tweeter and are coupled to the larger, 7˝ x 10˝ passive radiator in the center, and two smaller ones which each contain a special 5-1/4˝ driver engineered for low frequency response, which runs up to 500 Hz, and is coupled to one of the smaller, 6-3/4˝ x 8˝ passives.
High-Resolution Sonic Performance
Sonically, the SuperCenters offer the same lifelike, highly detailed, high-resolution, smooth, open, boxless sound quality that all GoldenEar™ speakers are famous for, with excellent low frequency extension and power handling capacity for spectacular dynamic range and impact.
