The Miracord 50 Turntable is a testament to ELAC's unwavering commitment to precision engineering and a passion for music that transcends time. It seamlessly blends cutting-edge technology with the timeless appeal of vinyl, providing audiophiles and music enthusiasts alike with an immersive journey into the heart of their favorite tunes.

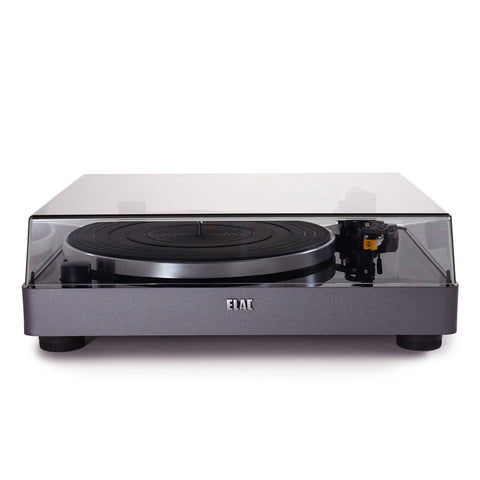

ELAC MRC501 Miracord 50 Turntable (Gloss Black)
$699.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
The Miracord 50 Turntable is a testament to ELAC's unwavering commitment to precision engineering and a passion for music that transcends time. It seamlessly blends cutting-edge technology with the timeless appeal of vinyl, providing audiophiles and music enthusiasts alike with an immersive journey into the heart of their favorite tunes.
FEATURES
ANTI-RESONANCE CHASSIS: Superior isolation is achieved with a chassis designed to minimize the sonic effects of vibration and feedback. A low-noise DC servo motor drives a die-cast, high-inertia aluminum platter with special record mat via a rubber belt, resulting in stable speed and minimal wow and flutter.
DAMPED PLATTER: The underside of the platter is covered with strategically-placed elastomer damping material. Not only does this material drastically reduce the platter resonance (the RING when the platter is tapped) but due to the increased mass it also increases rotational inertia, improving speed accuracy. An undamped platter will ring like a bell, and that resonant energy is transferred through the vinyl back to the phono cartridge resulting in distortion.
SERVO SPEED CONTROL: A sensor and motor control circuit measures the actual platter speed at the bearing and corrects it instantaneously in a closed-loop feedback system. This technique improves the Model 50’s wow and flutter specification by over 50% and speed accuracy by 66% over the simple belt drive and DC motor.
PRECISION TONEARM AND CARTRIDGE: The tonearm is a static-balance, straight-tube design with precision bearings, built-in anti-skate adjustment and removable bayonet-style headshell. A premounted moving-magnet cartridge takes all the guesswork out of setup and assures proper vertical tracking angle, tracking weight and azimuth adjustment right out of the box.
BUILT-IN PHONO EQUALIZER AMPLIFIER: Unlike most turntables, the Miracord 50 comes complete with a built-in defeatable phono preamp for correct RIAA equalization. That means you can add LP playback without having to add a costly phono stage to line-level preamps or digital-only systems. Just plug it in, put on a record and enjoy rich LP sound!
HIGH-TOLERANCE MAIN BEARING ASSEMBLY: The motor servo sensor for the speed feedback is integrated into an improved main bearing assembly. The platter rests on this bearing, so it takes not only the vertical load of the platter mass plus the record, it also has to resist the torque applied to it via the drive belt and motor pulling laterally against it. This better bearing has lower friction and lower rumble.
TECHNICAL SPECS
Turntable:
Drive system: Belt drive
Motor: DC motor
Selectable speeds: 33? and 45 rpm
Motor servo: Speed rotation and servo system
Rotation speed variation: +/-1%
Wow and flutter: 0.1%
Signal-to-noise ratio: 67 dB or higher (A-weighted), 60 dB or higher (unweighted)
Platter: Aluminum die-cast
Platter diameter: 12.0 in / 300 mm
Cartridge:
Type: Audio-Technica AT91 moving magnet
Stylus construction: Bonded diamond
Mount: Half-inch
Frequency response: 20 Hz to 20 kHz
Channel separation: >18 dB
Channel balance: 2.5 dB
Vertical tracking angle: 20 degrees
Stylus pressure: 2.0 g +/-0.5 g
Cartridge weight: 5.0 g +/-0.5 g
Headshell weight: 11.0 g (including screws, nuts and wires)
Tonearm:
Type: Aluminum tube, static-balanced
Effective arm length: 8.8 in / 223.6 mm
Stylus pressure range: 0 to 4.0 g
Cartridge weight range: 3.5 to 6.0 g
Effective arm mass: 27.4 g
Overhang: 18.6 mm
Offset angle: 25 degrees
Anti-skating adjustment: Supported
Main bearing: Stainless steel
Phono Equalizer Amplifier
Type: Moving magnet (MM)
Phono output: 2.5 mV (1 kHz, 3.54 cm/sec)
Line output: 140 mV (-17 dBV)
Phono/Line: Switchable
Supported load: 47 kΩ
General:
Connector: RCA pin jack
Voltage: 100 to 240 V AC / 50 to 60 Hz
Power Consumption 1.5 W (less than 0.5 W at standby)
