DESCRIPTION
See nothing, hear everything

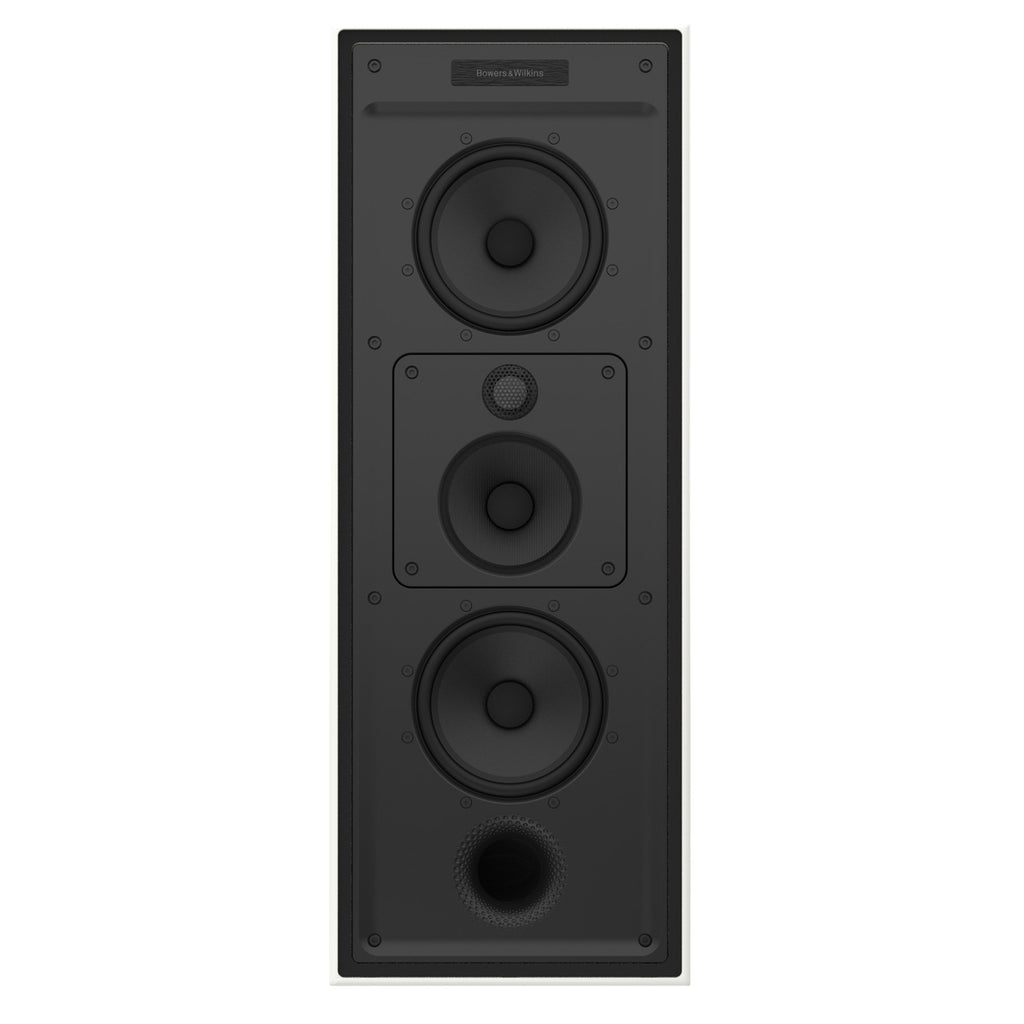

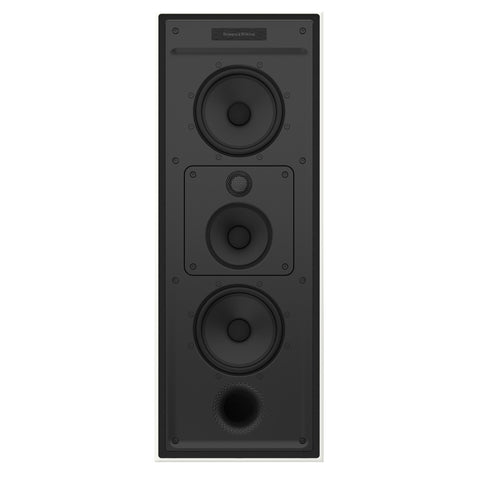

The CWM7.3 S2 features an integrated back box that optimizes its performance, cuts down on sound transference through walls, and also makes it easy to retrofit. Its design incorporates twin 150mm (6in) Aerofoil profile bass drivers, a 100mm (4in) Continuum cone FSTTM mid-range driver, and a Carbon Dome 25mm (1in) tweeter, all proven technologies shared with the acclaimed 700 Series range of loudspeakers. These outstanding transducers, when combined with high-quality, optimized components on the crossover and a critically formed baffle constructed from glass-reinforced ABS, produce a truly remarkable in-wall speaker.
Features
High resolution, low distortion drive unit technology
Integrated backbox for easy retrofit into drywall
Landscape or portrait installation options
SPECIFICATIONS
Technical features
Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones Flowport™
Drive units
1x ø 1" Carbon Dome high-frequency
1x ø 4" Continuum cone FST midrange
2x ø 6" Aerofoil profile bass
Frequency range: (-6dB) -6dB at 43Hz and 33kHz
Frequency Response: -3dB 45Hz - 28kHz ±3dB
Sensitivity: 90dB SPL (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance: 8Ω (minimum 3.1Ω)
Recommended amplifier power: 25W - 200W into 8Ω on unclipped programme
Frame height: 29"
Frame width: 11"
Depth (behind surface): 4.02"
Cut-out height: 28"
Cut-out width: 9.9"
Cut-out height w/PMK: 28.1"
Cut-out width w/PMK: 10.1"
Reservoir box height: 18.1"
Reservoir box width: 8.7"
Protrusion: 0.28"
PMK: 7.3W
Net weight: 27.32 lbs
