Bowers & Wilkins CCM7.5S2 In Ceiling Speaker - Each
$1,250.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
See nothing, hear everything

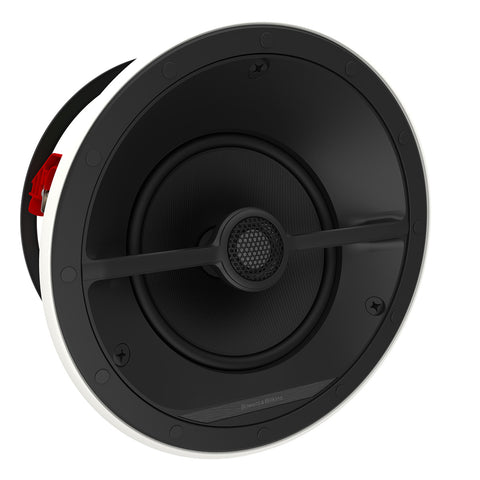

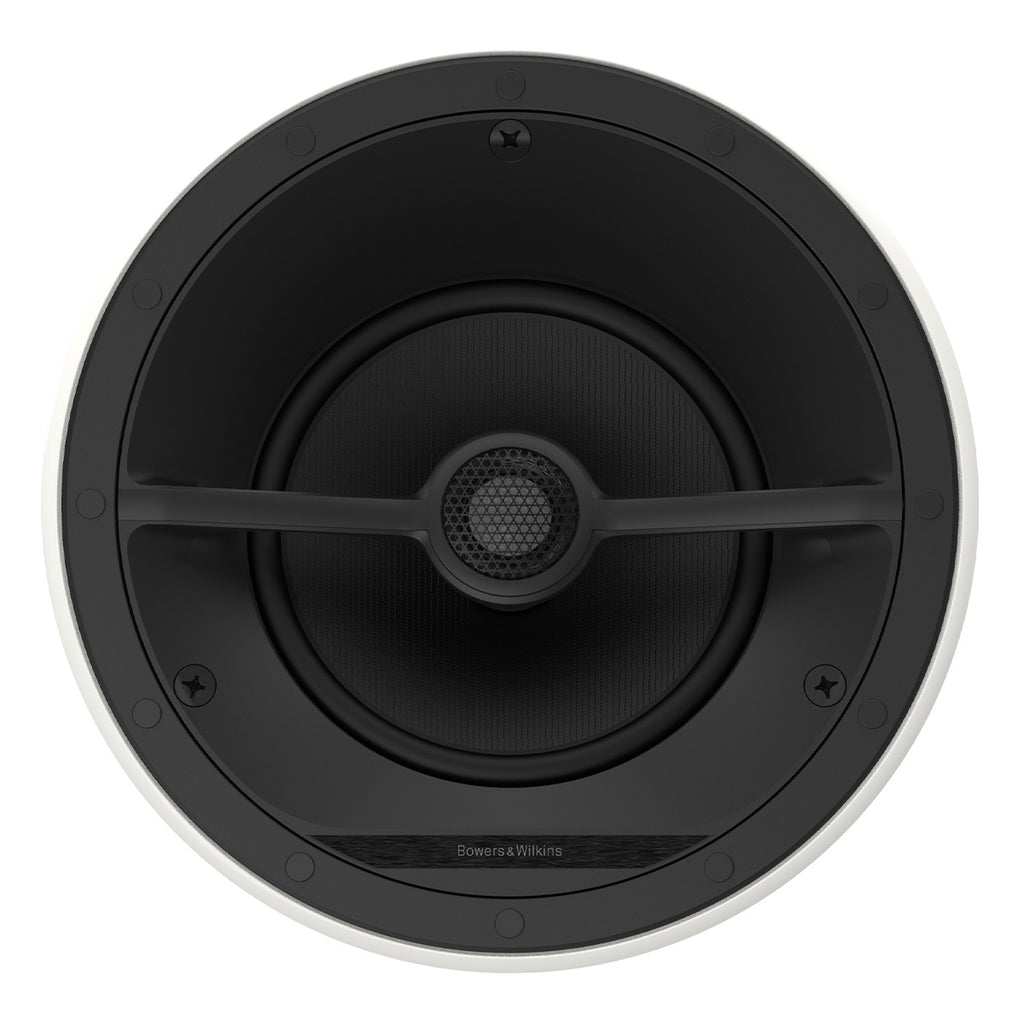

Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, center, right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1") Carbon Dome tweeter and a 180mm (7") Continuum cone mid/ bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, dialogue is crystal clear and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogs™ fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.
SPECIFICATIONS
Technical features
Carbon Dome tweeter
Continuum mid/bass
Description: 2-way in-ceiling system
Drive units
1x ø25mm (1in) Carbon Dome high-frequency
1x ø180mm (7in) Continuum cone mid/bass
Frequency range: (-6dB) -6dB at 25Hz - 33kHz
Frequency Response: -3dB 32Hz - 28kHz ±3dB
Sensitivity: 90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz - 33kHz
<0.5% 100Hz - 28kHz
Nominal impedance: 8Ω (minimum 4.8Ω)
Recommended amplifier power: 25W - 150W into 8Ω on unclipped programme
Frame diameter: 290mm (11.4")
Depth (behind surface): 128mm (5")
Cut-out diameter: 254mm (10")
Protrusion: 8.5mm (0.33")
PMK: PMK C8
Back box: BB 6C
Square grille option: GR68SQ
Net weight: 3.1kg (6.83 lb)
Finishes Grille: White
