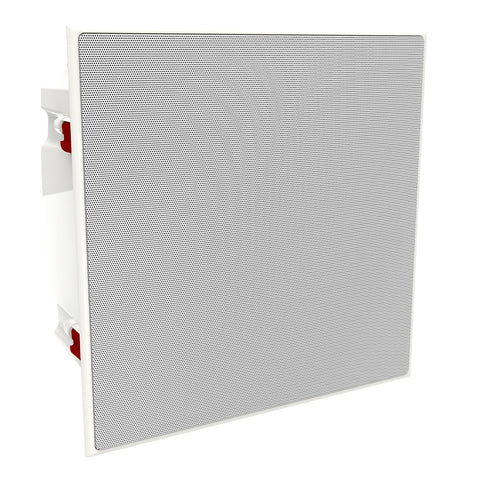

Bowers & Wilkins CCM7.3S2 In-Ceiling Speaker - Each
$2,550.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION

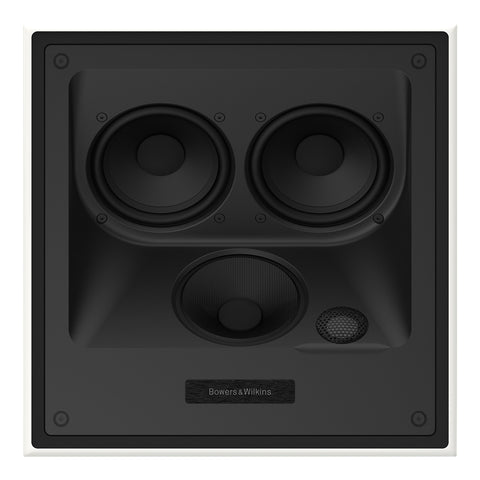

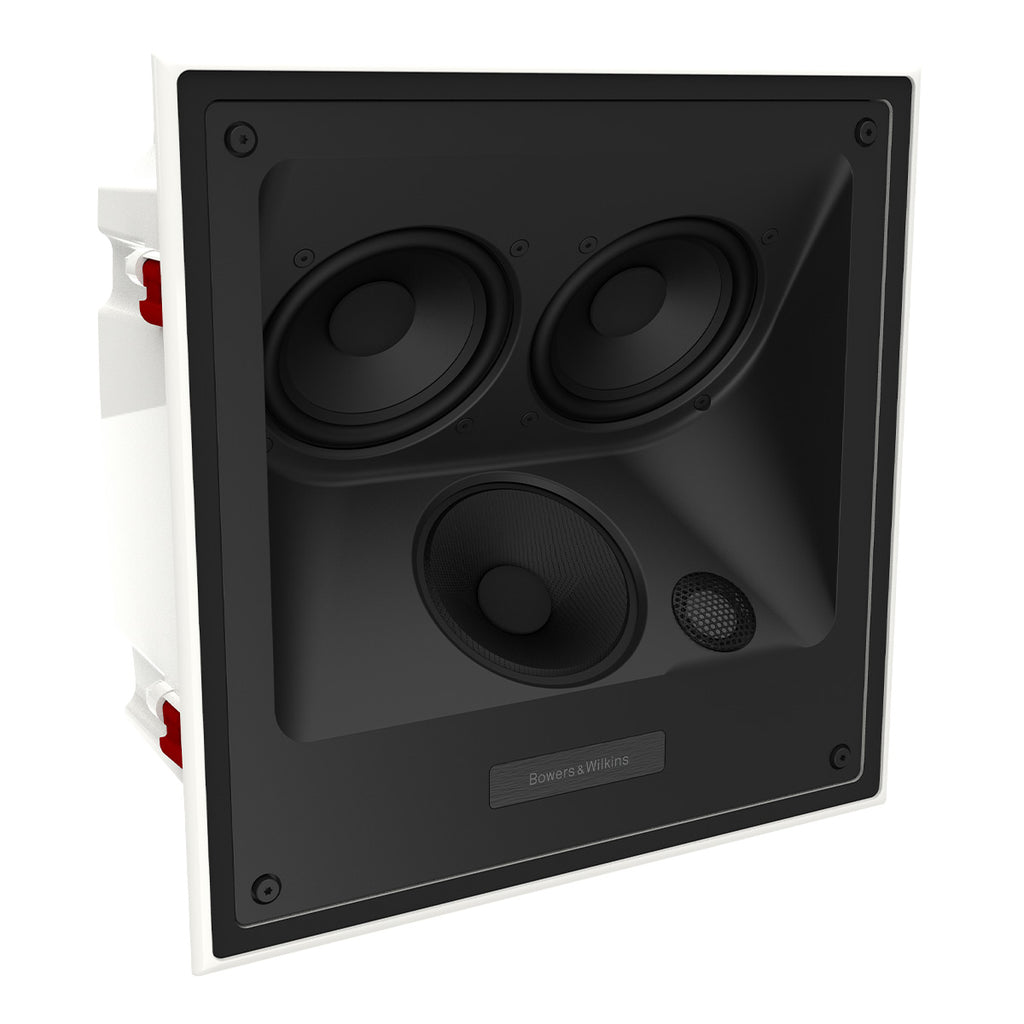

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.
Features
Three-Way Design
Carbon Dome Tweeter
Continuum Cone Midrange
Aerofoil Bass Drivers

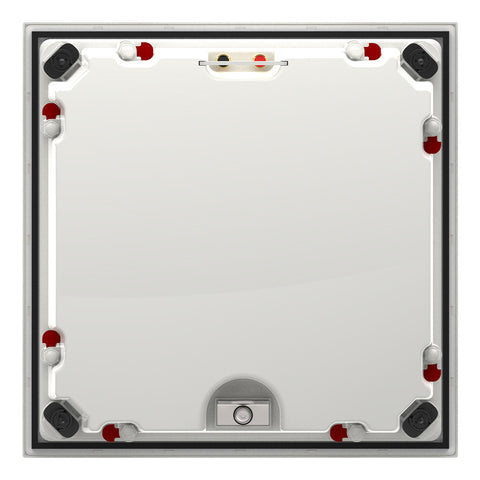

Built-In Back-Box

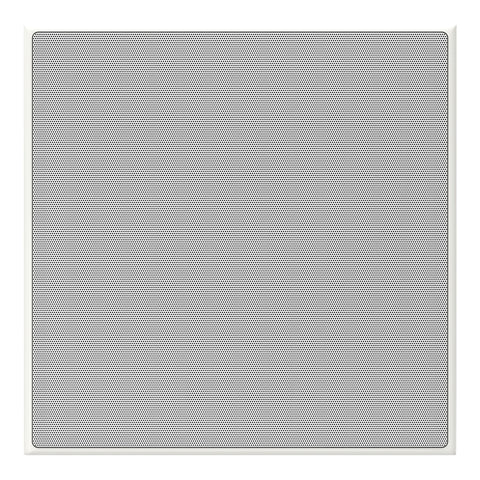

Paintable Magnetic Grille
SPECIFICATIONS
Technical features
Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Description: 3-way in-ceiling system
Drive units
1x ø25mm (1in) Carbon Dome high-frequency
1x ø100mm (4in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil profile bass
Frequency range (-6dB): -6dB at 52Hz and 33kHz
Frequency Response -3dB: 55Hz - 28kHz ±3dB
Sensitivity: 90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance: 8Ω (minimum 3.1Ω)
Recommended amplifier power: 25W - 200W into 8Ω on unclipped program
Frame Dimensions
Height: 14”
Width: 14”
Depth: 7.66”
Cut-Out Dimenions
Cut-out height: 13.1”
Cut-out width: 13.1”
Cut-out height w/PMK: 13.2”
Cut-out width w/PMK: 13.2”
Protrusion: 0.3”
PMK: 7C
Net weight: 19.84 lbs. (Inc accessories)
Grille: White
