DESCRIPTION

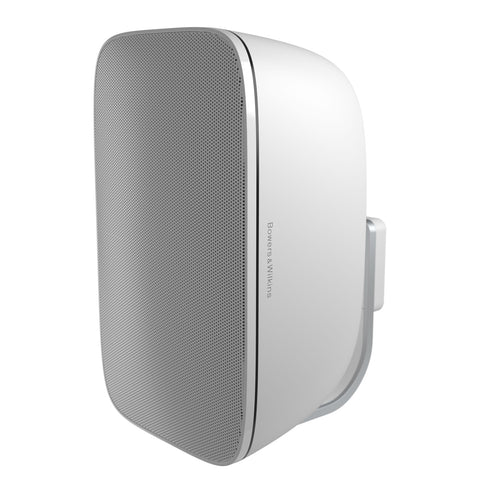

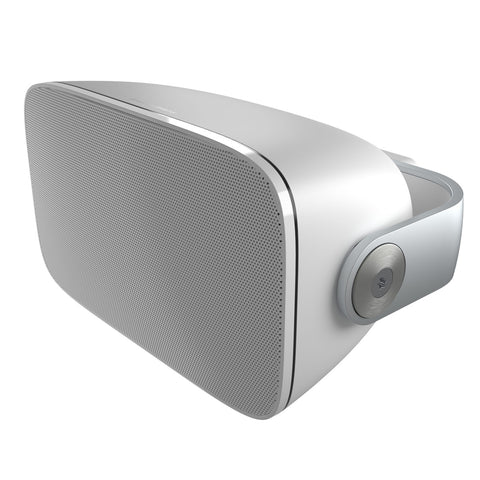

Position vertically or horizontally thanks to the elegant aluminum wall-bracket. Resistant to dust, moisture, and UV, the AM-1 is far tougher than it looks.
Performance That Endures
AM-1 is entirely sealed, in order to keep the elements at bay. It’s tough and hard-wearing too, and its clever one-piece mounting system with 220-degree rotation means it’s ready to perform wherever you want it to, come rain or shine.
Easy To Install, Great To Listen To
A one-plug, simple-to-install mounting system means AM-1 is happy vertically or horizontally. Plus, smart engineering means AM-1 sounds great whichever way you choose to mount it.
Specified And Built Without Compromise
With our trademark Nautilus tube-loaded 25mm aluminum dome tweeter and 130mm glassfiber mid/bass driver supplemented by an auxiliary bass radiator for solid, powerful bass response, AM-1 has sound and scale way beyond its compact dimensions.
SPECIFICATIONS
Drive units
1x ø25mm (1") aluminum dome high-frequency
1x ø130mm (5") glassfibre cone bass/midrange
Frequency range: -6dB at 50kHz (wall mounted)
Frequency response: 51Hz - 22kHz on reference axis
Sensitivity: 86dB (2.83V, 1m)
Total harmonic distortion: <1% 200Hz - 20kHz (86dB, 1m)
Nominal impedance: 8Ω (5.2Ω min)
Recommended amplifier power: 20W - 100W into 8O on unclipped program power
Dimensions (H x W x D): 12.25" x 7" x 8.25"
Weight: 8.8 lbs.
