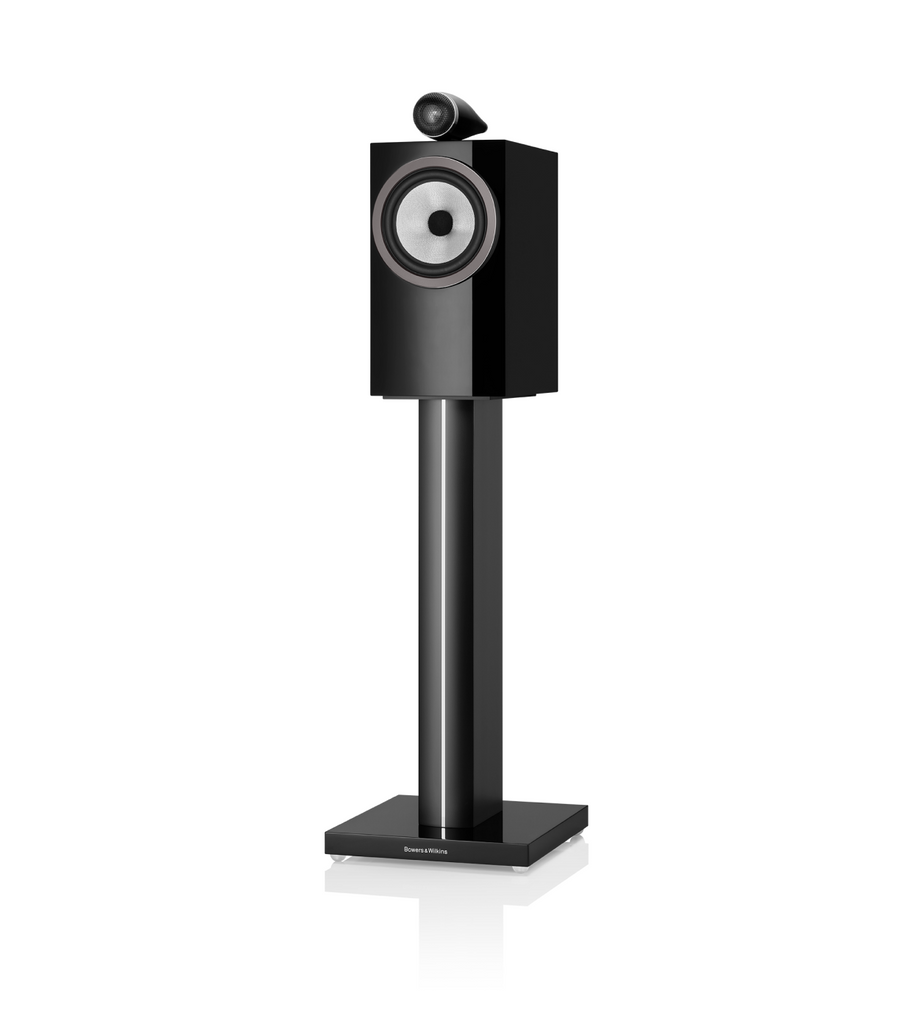

705 S3’s Carbon Dome tweeter is housed in a Solid Body Tweeter-on-Top enclosure evolved from the latest generation of 800 Series Diamond. That joins a new and subtly curved baffle endowed with an all-new ‘pod’ housing for its Continuum Cone bass/midrange driver.
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.
* Stand(s) not included.
- Decoupled Carbon Dome tweeter
- Solid Body Tweeter-on-Top
- Continuum™ cone bass / midrange
- Drive units
- 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
- 1x ø165mm (6.5 in) Continuum cone bass / midrange
- Frequency range: 45Hz and 33kHz
- Frequency response: 50Hz - 28kHz ±3dB
- Sensitivity: 88dB spl (2.83Vrms, 1m)
- Harmonic distortion
- 2nd and 3rd harmonics (90dB, 1m on axis)
- <1% 100Hz - 22kHz
- <0.5% 150Hz - 20kHz
- Nominal impedance: 8Ω (minimum 3.7Ω)
- Recommended amplifier power: 30W - 120W into 8Ω on unclipped programme
- Height: 345mm (13.6 in) cabinet only, 413mm (16.3 in) including tweeter
- Width: 192mm (7.6 in) cabinet only
- Depth: 297mm (11.7 in) cabinet only, 337mm (13.3 in) including grille and terminals
- Net weight: 9.58kg (21.1 lb)
