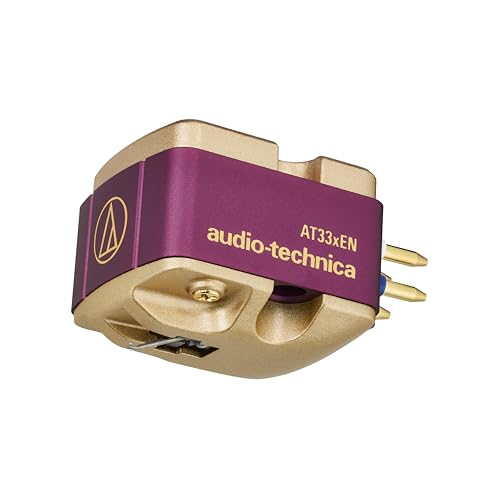

Rediscover the warmth and depth of vinyl with the Audio-Technica AT33xEN Dual Moving Coil Stereo Cartridge. A refined evolution of the legendary AT33 Series, the AT33xEN combines precision engineering with musical expressiveness. Its elliptical nude stylus (0.3 x 0.7 mil) mounted on a duralumin tapered cantilever ensures exceptional tracking accuracy and extended high-frequency response. The die-cast zinc base reduces unwanted resonance, delivering a fuller, more natural sound across the spectrum. With a new piano wire suspension systemenhancing mid-to-low range stability, the AT33xEN offers rich tonal balance and engaging analog performance for serious vinyl enthusiasts.
Free standard shipping on all orders within the continental US.
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
Rediscover the warmth and depth of vinyl with the Audio-Technica AT33xEN Dual Moving Coil Stereo Cartridge. A refined evolution of the legendary AT33 Series, the AT33xEN combines precision engineering with musical expressiveness. Its elliptical nude stylus (0.3 x 0.7 mil) mounted on a duralumin tapered cantilever ensures exceptional tracking accuracy and extended high-frequency response. The die-cast zinc base reduces unwanted resonance, delivering a fuller, more natural sound across the spectrum. With a new piano wire suspension systemenhancing mid-to-low range stability, the AT33xEN offers rich tonal balance and engaging analog performance for serious vinyl enthusiasts.
FEATURES
AT33x Series dual moving coil stereo cartridge with 0.3 x 0.7 mil elliptical nude stylus
Full, warm sound is suitable for a wide variety of recordings
Dual moving coil design, featuring independent left and right coils, provides outstanding channel separation
PCOCC (Pure Copper by Ohno Continuous Casting) coils provide pure, smooth signal transmission
Neodymium magnet and permendur yoke maximize energy efficiency for high-resolution, responsive playback
Composite cartridge body (die-cast zinc, aluminum, and high-rigidity polymer) reduces resonance throughout the body for balanced, natural sound reproduction
Highly rigid and dense die-cast zinc material is used at the base of the cartridge to suppress unwanted vibrations and improve the expressiveness of the mid-to-low frequency range
Threaded mounting holes make it easier to mount the cartridge to a headshell, especially one integrated into a tonearm
0.3 x 0.7 mil elliptical nude stylus tracks the record groove with accuracy for outstanding audio reproduction
High-hardness duralumin tapered pipe cantilever enhances high-frequency control
Newly developed suspension mechanism and rubber damper design (with lower dynamic compliance than other A-T cartridges) enable the cartridge to be used with a variety of tonearms
Thick gold plating on the terminal pins reduces contact resistance and enhances sound quality
Crafted and hand-finished by artisans in Japan
TECHNICAL SPECS
Frequency Response: 20 to 40,000 Hz
Channel Separation: 27 dB (1 kHz)
Vertical Tracking Angle: 19°
Tracking Force: 1.8 to 2.2 g (2.0 g standard)
Recommended Load Impedance: ≥ 100 ohms (when head amplifier connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 26 μH (1 kHz)
Output Voltage: 0.4 mV (1 kHz, 5 cm/sec.)
Output Balance: 1.0 dB (1 kHz)
Stylus Shape: Nude Elliptical
Cantilever: Duralumin tapered pipe
Static Compliance: 21 × 10-6 cm/dyne
Dynamic Compliance: 6 × 10-6 cm/dyne (100 Hz)
Dimensions: 16.1 mm (0.63”) × 16.6 mm (0.65”) × 26.1 mm (1.0”) (H × W × D)
