DESCRIPTION

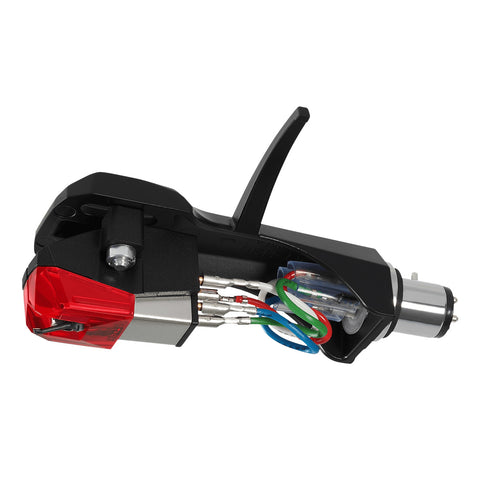

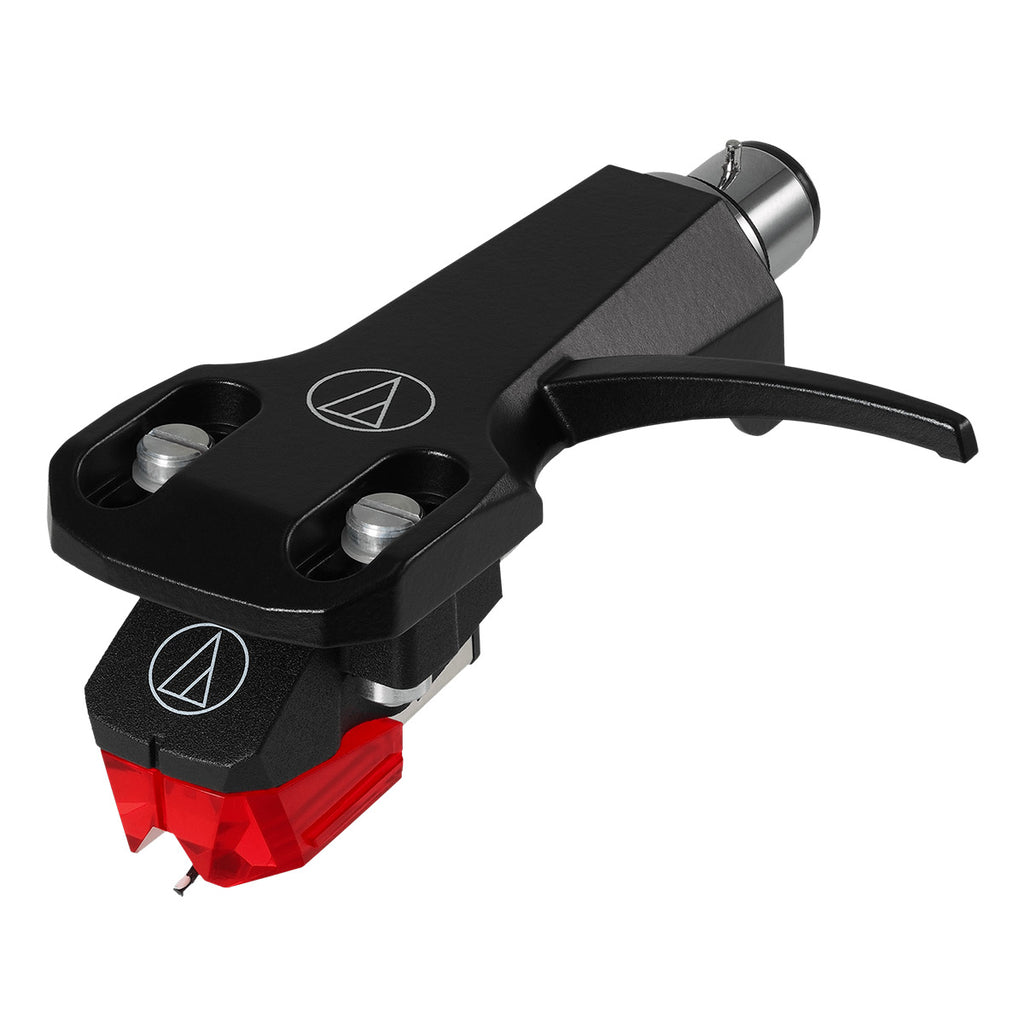

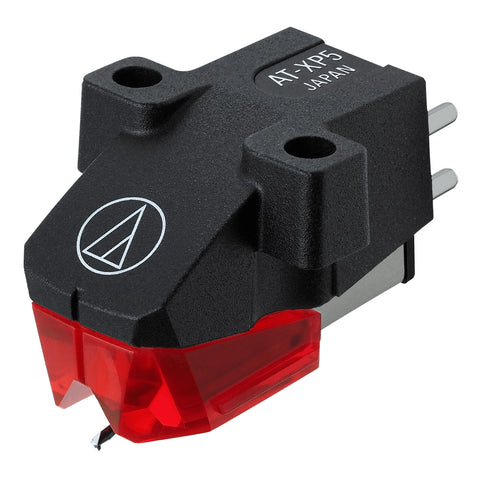

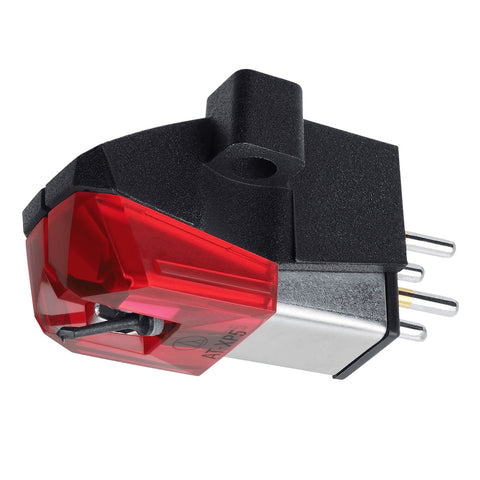

The Audio-Technica AT-XP5/H is a DJ cartridge and headshell combo kit that includes the AT-XP5 cartridge pre-mounted on the AT-HS6BK headshell. It features a highly rigid polyphenylene sulfide (PPS) and glass fiber body, ensuring durability and precise tracking. The cartridge is equipped with a durable carbon fiber-reinforced ABS cantilever and nylon wire suspension for excellent tracking and channel separation. Additionally, it offers a high output level of 5.5 mV and a tracking force range of 2.0 to 4.0 grams, making it ideal for professional DJ use.
Features
Elliptical Bonded Stylus Tip
Durable Carbon Fiber-Reinforced ABS Cantilever
Nylon Wire Suspension
Design Offers Maximum Visibility of The Stylus Tip
Compatible with Any XP or VM95 Series Replacement Stylus
SPECIFICATIONS
Frequency Response: 20-18,000 Hz
Channel Separation: 20 (dB at 1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Coil Impedance: 6.7 k ohms (1 kHz)
Coil Inductance: 1 H (1 kHz)
Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Carbon fiber-reinforced ABS
Static Compliance: 20 x 10 – 6 cm / dyne
Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
Mounting: Half-inch
Cartridge Weight: 15.6g
