Audio-Technica AT-VMN95SH Replacement Stylus
Free standard shipping on all orders within the continental US.
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
DESCRIPTION

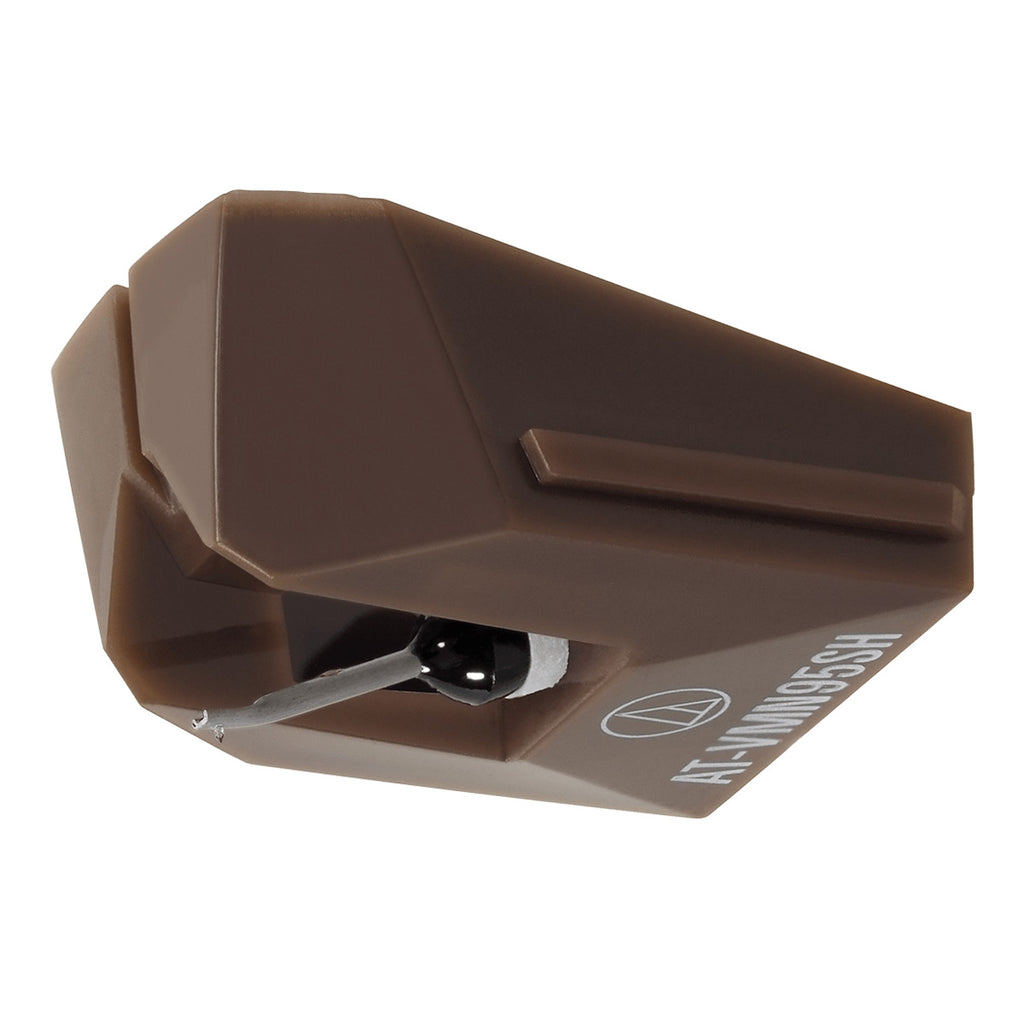

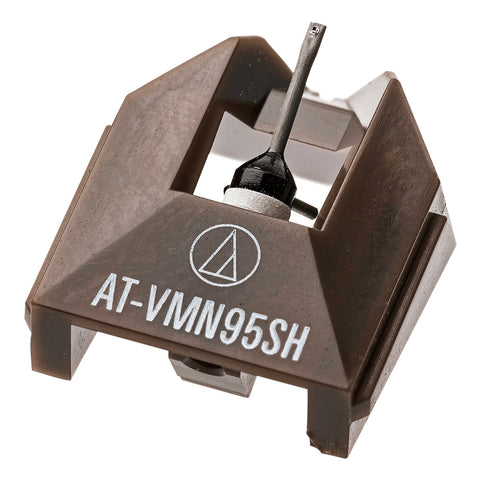

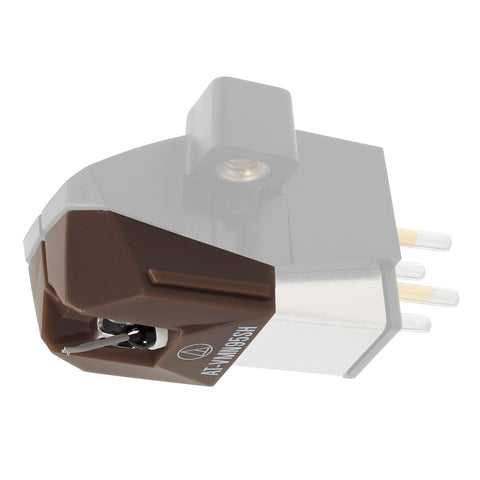

2.7 x 0.26 mil Shibata replacement stylus for AT-VM95SH dual moving magnet cartridge.
SPECIFICATIONS
- Frequency Response: 20-25,000 Hz
- Channel Separation: 23 dB at 1 kHz
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude Shibata
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: 2.7 x 0.26 mil Shibata
- Cantilever: Aluminum pipe
- Static Compliance: 20 x 10^-6 cm/dyne
- Dynamic Compliance: 10 x 10^-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.1 g
