DESCRIPTION

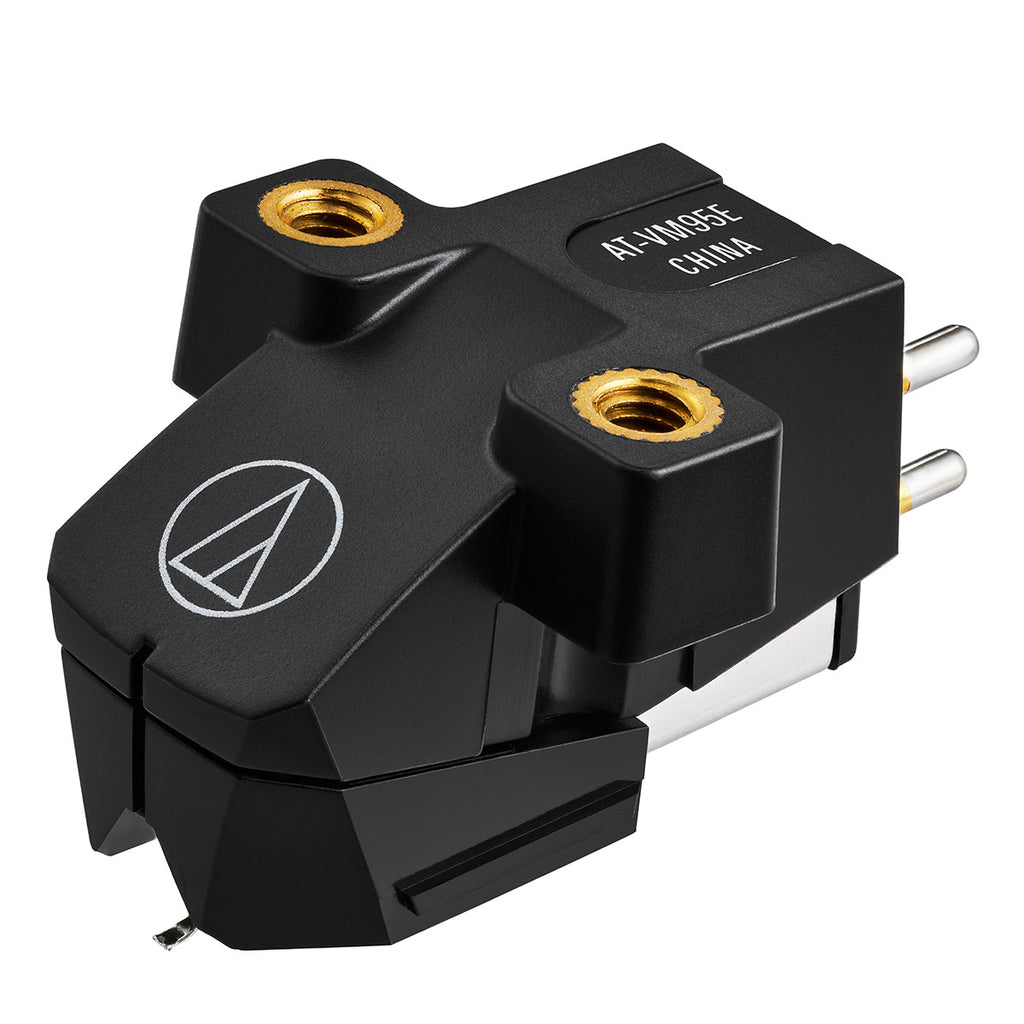

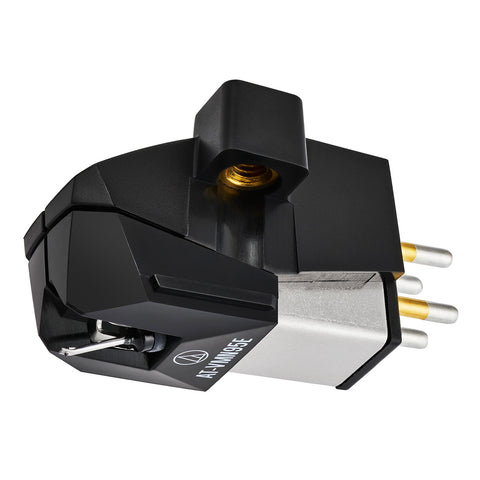

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
VM95 Series Dual Magnet Cartridge with 0.3 x 0.7 mil Elliptical Stylus
Aluminum Cantilever
Specially Wound Coils Increase Output Voltage
Durable Low-Resonance Polymer Housing
Simple Installation with any AT-VMN95 Replacement Stylus
SPECIFICATIONS
Frequency Response: 20-22,000 Hz
Channel Separation: 20 (dB at 1 kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Coil Impedance: 3.3 k ohms (1 kHz)
DC Resistance: 485 ohms
Coil Inductance: 550 mH (1 kHz)
Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
Output Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Aluminum pipe
Static Compliance: 17 x 10 – 6 cm / dyne
Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
Mounting: Half-inch
Cartridge Weight: 6.1g
Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
Model: AT-VM95E
Mounting Feature: Half-inch mount
Recommended Load Capacitance: 100 to 200 pF
Replacement Stylus: AT-VMN95E
Stylus Size: 0.3 x 0.7 mil
Type: VM Stereo Dual Magnet
Weight: 6.1 g (0.22 oz)
Wire Used for Coil: T.P. Copper
