DESCRIPTION

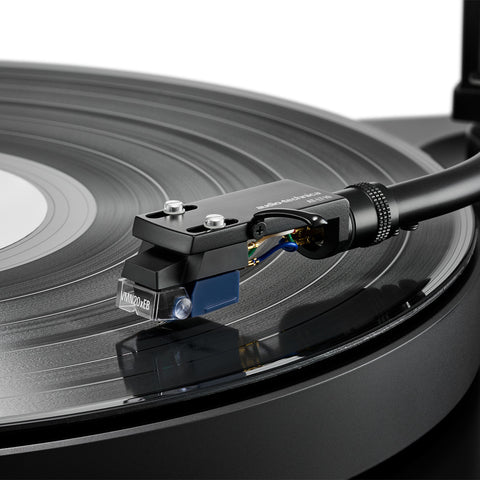

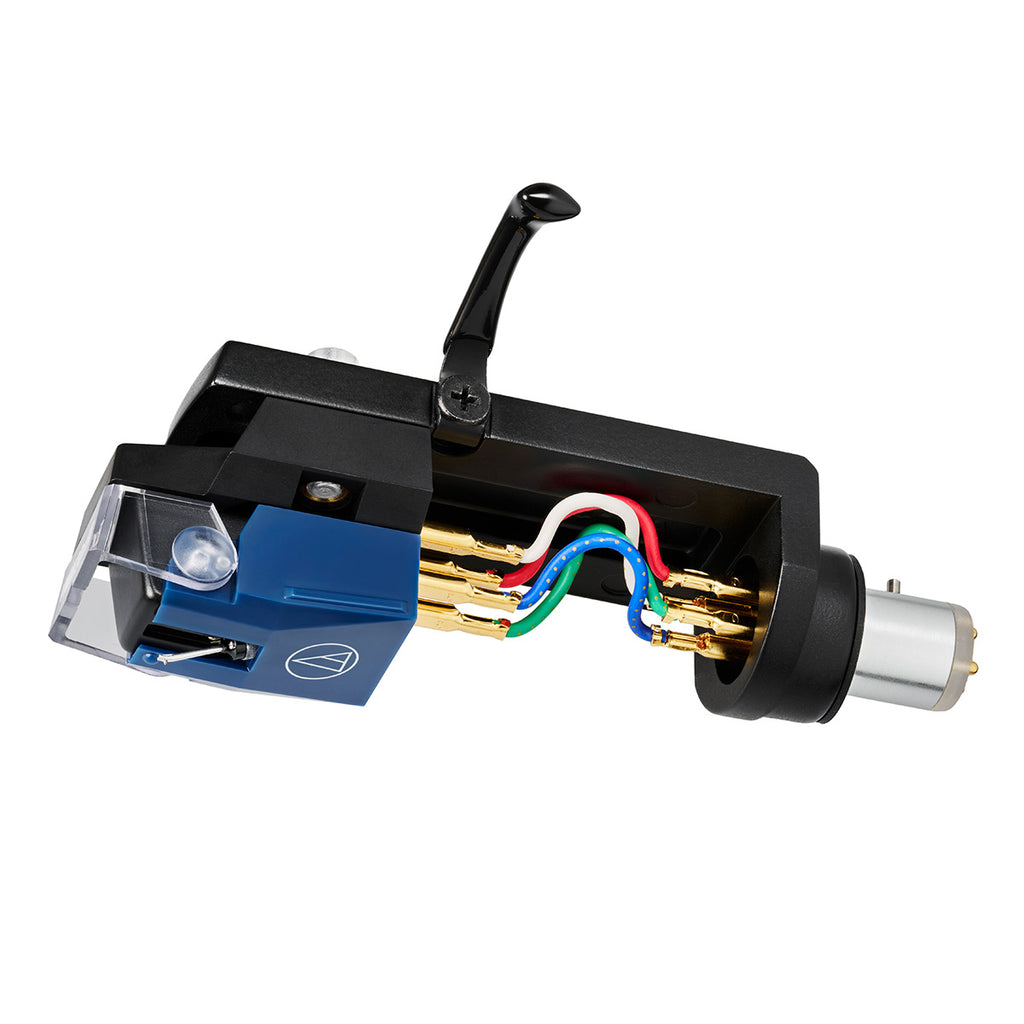

The AT-VM520xEB/H combo kit includes the AT-VM520xEB elliptical bonded dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM520xEB is part of the updated AT-VMx series, which introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.
Features

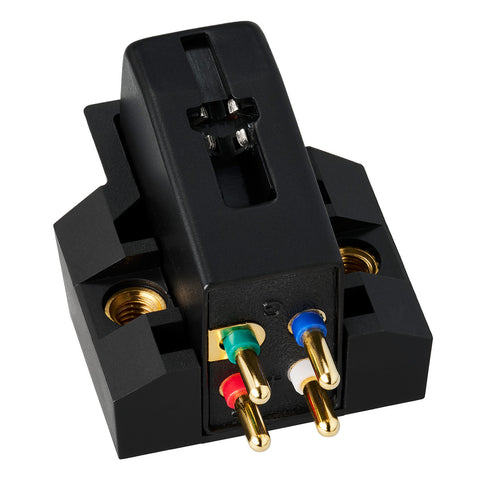

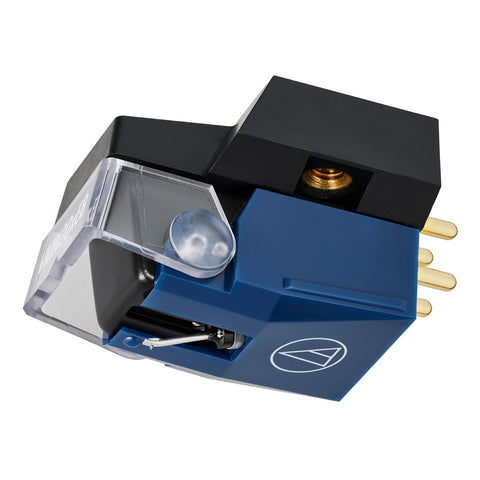

AT-VMx Dual Moving Magnet Cartridge
Elliptical Bonded Stylus (0.3 x 0.7 mil)
Paratoroidal Coils Improve Channel Separation, Channel Balance, and Transient Response
Center Shield Plate Reduces Crosstalk
Durable Low-Resonance Polymer Housing
Aluminum Cantilever
Compatible with Any Turntable Headshell That Accepts 1/2” Cartridges
AT-LT10 Universal ½”-Mount Headshell
For 4-Pin Turntable Cartridges with or Without Threaded Inserts
Ultra-Lightweight Aluminum Die-Cast Body Keeps Vibration to the Bare Minimum
Elongated Through Holes Enable Precise Cartridge Positioning and Overhang Adjustment
OFC (Oxygen-Free Copper) Lead Wires for Exceptional Sound Quality
Slip-Resistant Finger Lift Allows Stylus to Be Placed Precisely on the Record
Includes Mounting Screws
SPECIFICATIONS
Type: VM
Frequency response: 20 to 20,000 Hz
Output voltage: 5.0 mV (1 kHz, 5 cm/sec.)
Channel separation: 24 dB (1 kHz)
Output balance: 1.5 dB (1 kHz)
Tracking force: 1.8 to 2.2 g (2.0 g standard)
Coil impedance: 3.2 k ohms (1 kHz)
DC resistance: 750 ohms
Recommended load impedance: 47 k ohms
Recommended load capacitance: 150 to 250 pF
Coil inductance: 480 mH (1 kHz)
Static compliance: 23 × 10-6 cm/dyne
Dynamic compliance: 7 × 10-6 cm/dyne (100 Hz)
Stylus: Elliptical bonded
Stylus: curvature radius 0.3 × 0.7 mil
Cantilever: Aluminum pipe
Vertical tracking angle: 20°
Dimensions: 2.7” × 0.73” × 0.85”
Weight: 18.3 g (0.65 oz)
Replacement stylus (sold separately): AT-VMN20xEB
