DESCRIPTION

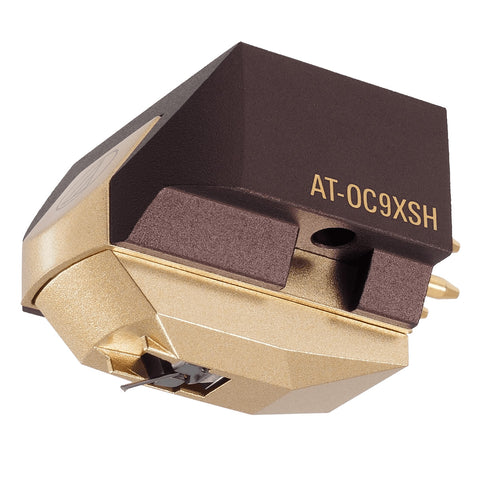

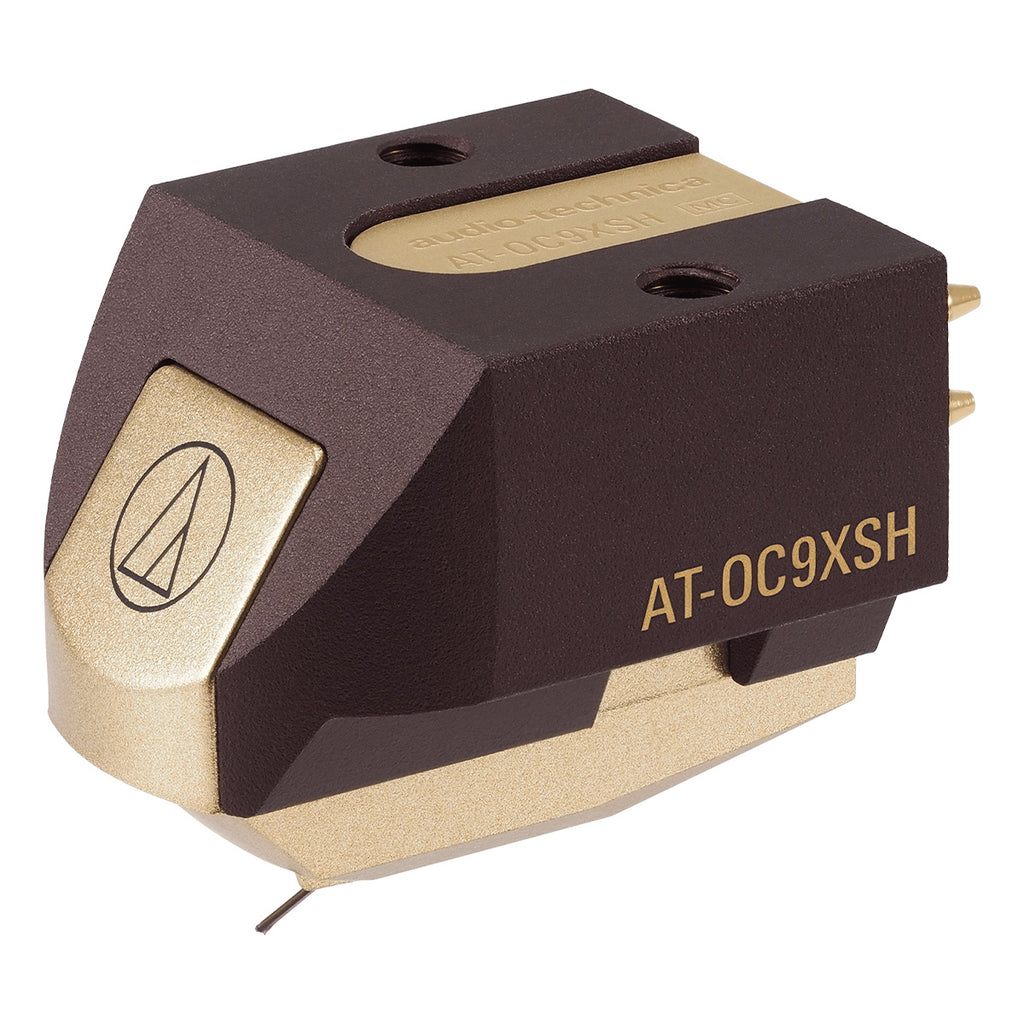

The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.
Features
Dual Moving Coil Design
Nude Shibata Stylus & Boron Cantilever
Pre-Threaded Cartridge Body
Aluminum Body Minimizes Unwanted Vibration
Design

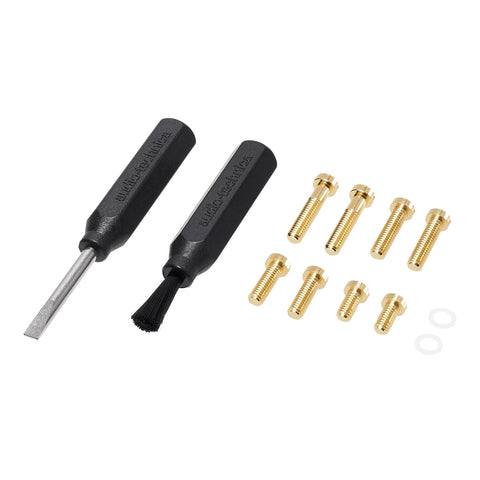

Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
SPECIFICATIONS
Frequency Response: 20-47,000 Hz
Channel Separation: 27 dB (1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Stylus Construction: Nude square shank
Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 25 mH (1 kHz)
Output Voltage: 0.4 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance: 1.0 dB (1 kHz)
Stylus Shape: Shibata
Cantilever: 0.28 mm diameter nude boron
Static Compliance: 20 x 10-6 cm/dyne
Dynamic Compliance: 16 x 10-6 cm/dyne (100 Hz)
Mounting: Half-inch
Cartridge Weight: 7.6 g
Dimensions (W x H x D): 0.66" x 0.68” × 1.01"
Body Material: Aluminum
Model: AT-OC9XSH
Mounting Feature: Half-inch mount
Stylus Curvature Radius: 2.7 x 0.26 mil
Stylus Size: Nude square shank
Terminal Pins: Brass
Type: Dual Moving Coil
Weight: 7.6 g (0.3 oz)
