DESCRIPTION

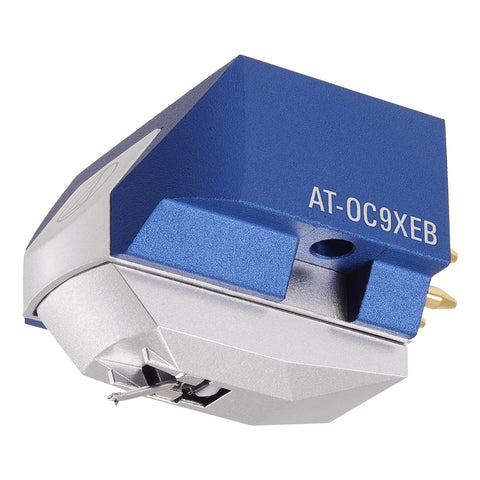

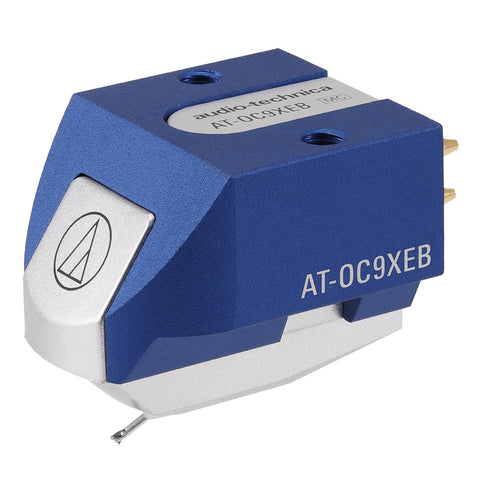

The AT-OC9XEB Dual Moving Coil cartridge with bonded elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.

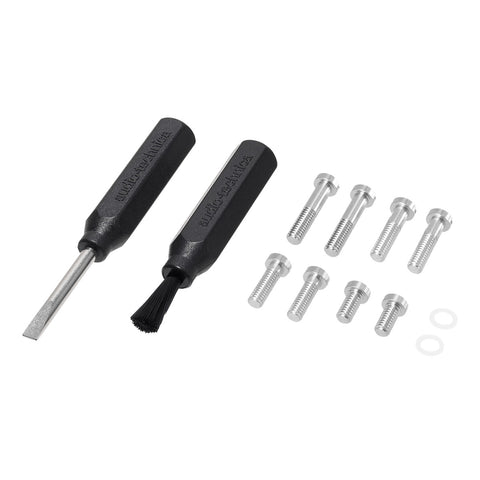

Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increases the magnetic energy, and the bonded elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
Features
Dual Moving Coil Design

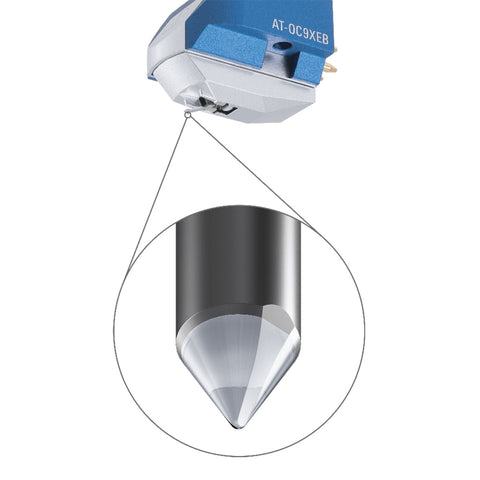

Bonded Elliptical Stylus & Aluminum Cantilever
Outstanding Channel Separation
Bonded Elliptical Stylus & Aluminum Cantilever
Neodymium Magnet & Pure Iron Yoke Increase Magnetic Energy
Aluminum Body Minimizes Unwanted Vibrations
SPECIFICATIONS
Frequency Response: 20-30,000 Hz
Channel Separation: 25 dB (1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 25 mH (1 kHz)
Output Voltage: 0.32 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance: 1.5 dB (1 kHz)
Stylus Shape: Elliptical bonded
Cantilever: Aluminum pipe
Static Compliance: 20 x 10-6 cm/dyne
Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
Mounting: Half-inch
Dimensions (W x H x D): 0.66" x 0.68" × 1.01"
Body Material: Aluminum
Model: AT-OC9XEB
Mounting Feature: Half-inch mount
Stylus Curvature Radius: 0.3 x 0.7 mil
Stylus Size: Bonded round shank
Terminal Pins: Brass
Type: Dual Moving Coil
Weight: 7.6 g (0.3 oz)
Wire Used for Coil: PCOCC
