DESCRIPTION

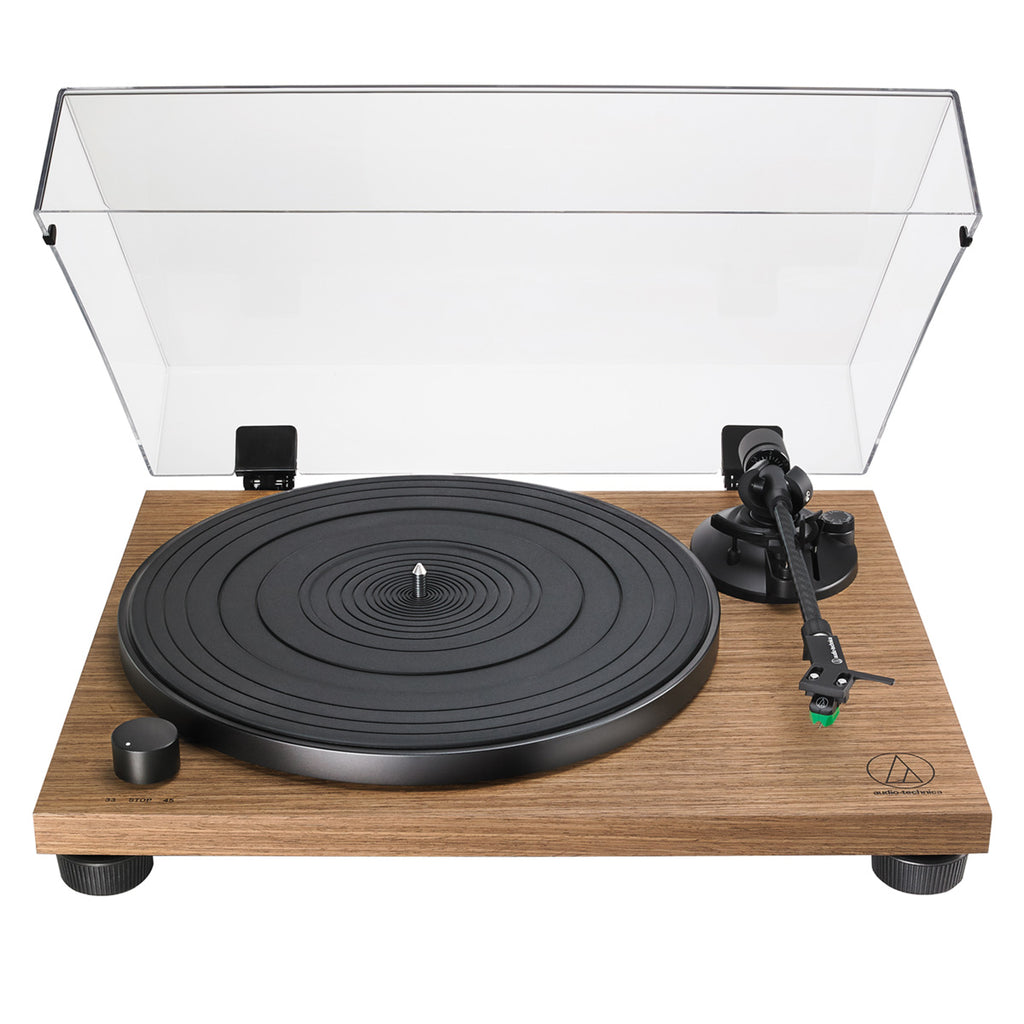

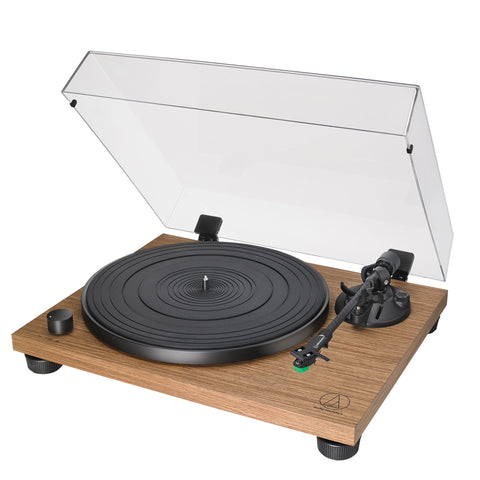

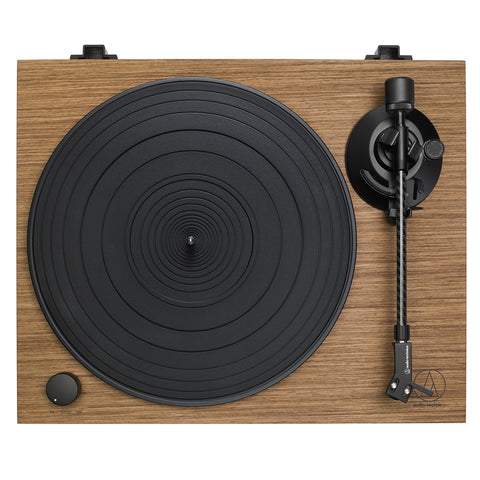

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.
The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
Features
Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
Motor features a speed-sensor system to maintain accurate platter rotation speed
Fully manual operation
Adjustable dynamic anti-skate control
Professional anti-resonance, die-cast aluminum platter with rubber mat
AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
Built-in switchable phono pre-amplifier for phono or line-level output
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
SPECIFICATIONS
Type: 2-speed, fully manual operation
Motor: DC servo motor w/ speed stability control
Drive method: Belt drive
Speeds: 33 1/3 RPM, 45 RPM
Turntable platter: Die-cast aluminum
Wow and flutter: 0.15% (WTD) @ 3kHz (JIS)
Signal-to-noise ratio: >60dB
Output level
Pre-amp PHONO 4mV nominal at 1kHz, 5cm/sec
Pre-amp LINE 200mV nominal at 1kHz, 5cm/sec
Phono pre-amp gain: 35dB nominal, RIAA equalized
Power supply requirements: 100 - 240V AC, 60Hz
Power consumption: 1W
Dimensions (W x D x H): 17.13" x 13.90" x 5.04"
Weight: 10.4 lbs.
Tonearm type: Balanced straight tonearm with detachable headshell
Effective arm length: 223.6mm
Overhang: 18.6mm
Tracking error angle: <2 degrees
Applicable cartridge weight: 12 - 17g
Anti-skating range: 0 - 3g
DESCRIPTION
The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.
The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
Features
Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
Motor features a speed-sensor system to maintain accurate platter rotation speed
Fully manual operation
Adjustable dynamic anti-skate control
Professional anti-resonance, die-cast aluminum platter with rubber mat
AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
Built-in switchable phono pre-amplifier for phono or line-level output
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
SPECIFICATIONS
Type: 2-speed, fully manual operation
Motor: DC servo motor w/ speed stability control
Drive method: Belt drive
Speeds: 33 1/3 RPM, 45 RPM
Turntable platter: Die-cast aluminum
Wow and flutter: 0.15% (WTD) @ 3kHz (JIS)
Signal-to-noise ratio: >60dB
Output level
Pre-amp PHONO 4mV nominal at 1kHz, 5cm/sec
Pre-amp LINE 200mV nominal at 1kHz, 5cm/sec
Phono pre-amp gain: 35dB nominal, RIAA equalized
Power supply requirements: 100 - 240V AC, 60Hz
Power consumption: 1W
Dimensions (W x D x H): 17.13" x 13.90" x 5.04"
Weight: 10.4 lbs.
Tonearm type: Balanced straight tonearm with detachable headshell
