DESCRIPTION

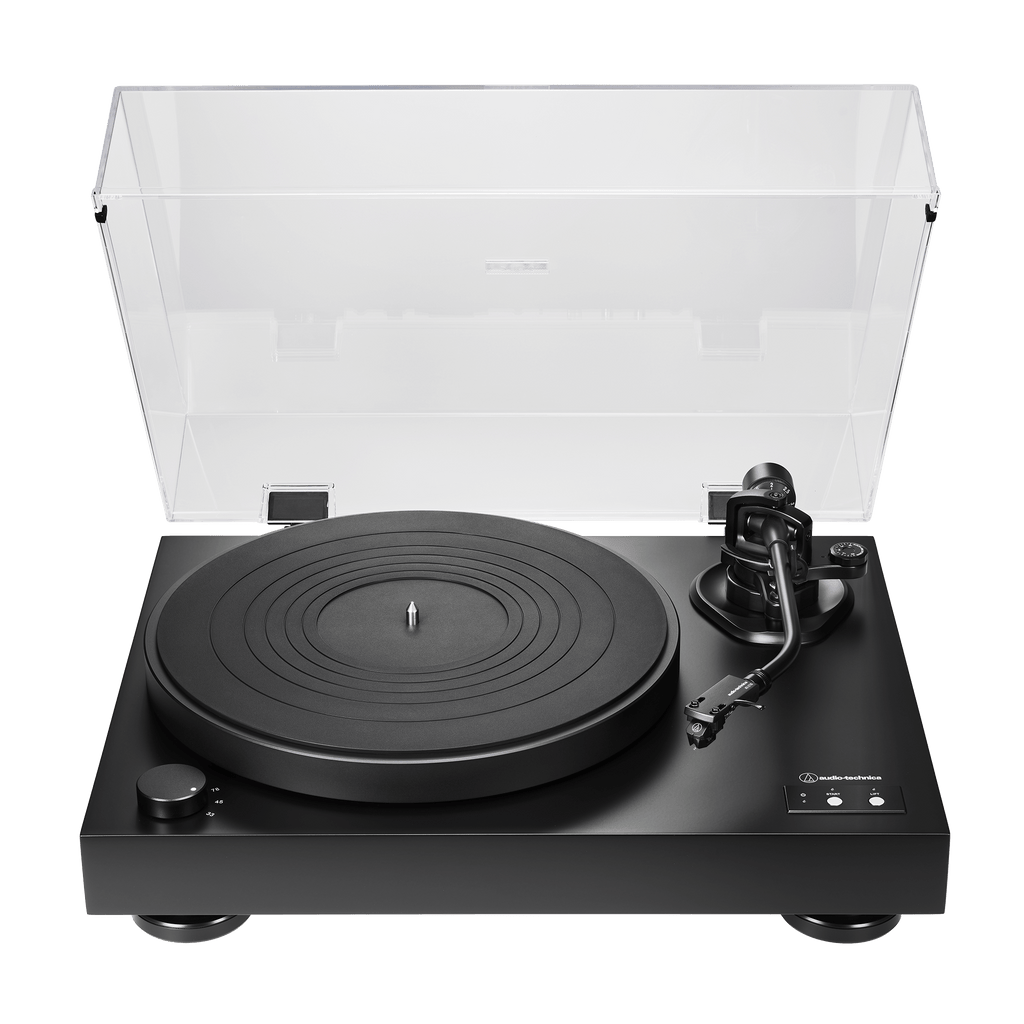

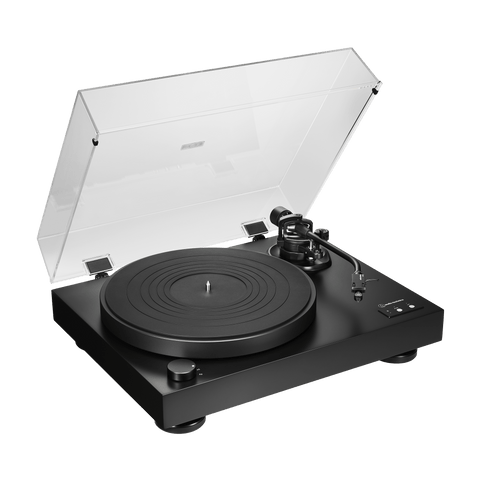

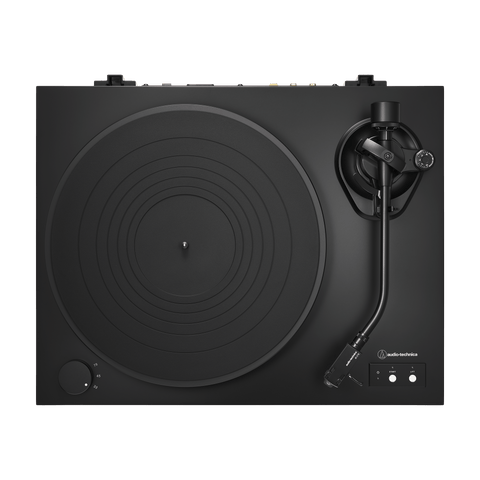

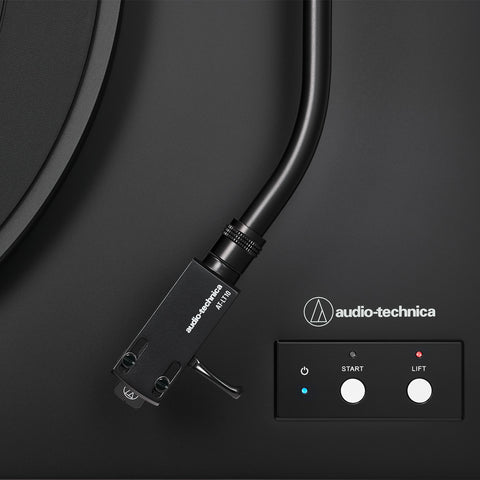

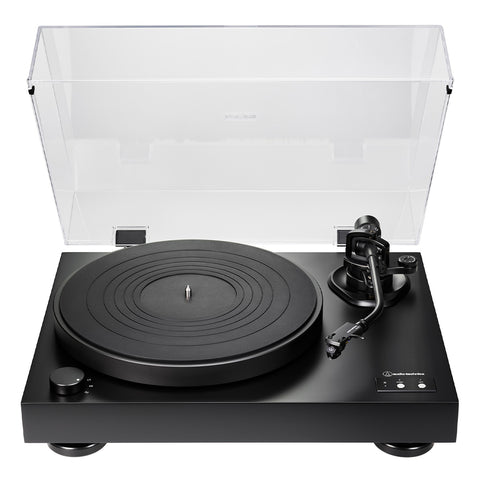

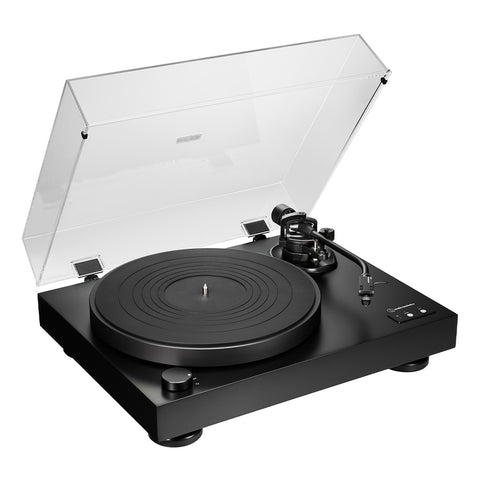

Audio-Technica expands its line of direct-drive turntables with the semi-automatic AT-LP8X, featuring a newly designed tonearm lift that automatically raises the tonearm at the end of a record side and stops the motor.

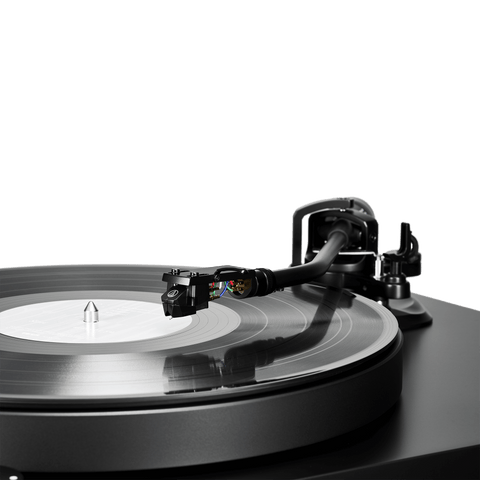

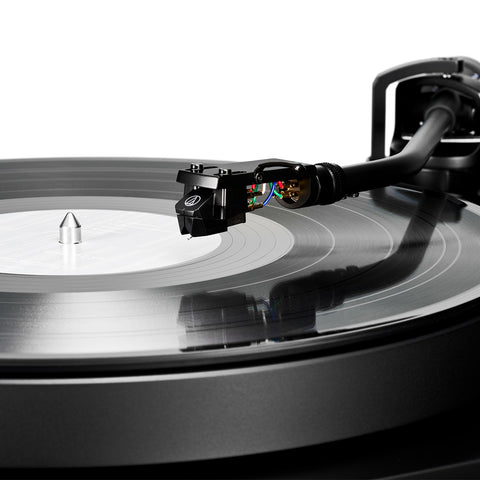

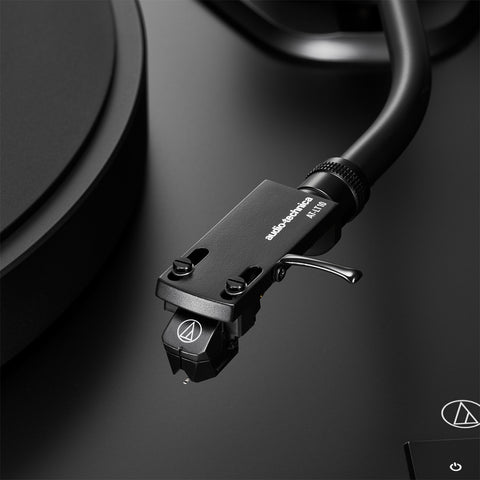

The turntable’s J-shaped aluminum tonearm, inspired by classic A-T models of the 1960s and ’70s, comes equipped with a newly designed AT-LT10 headshell and AT-VM95E BK (black) cartridge with 0.3 x 0.7 mil elliptical stylus, providing excellent channel separation and low distortion for outstanding tonal quality. For easy customization, the stylus can be replaced or interchanged with any of the five additional styli in the VM95 line, and the tonearm’s VTA (vertical tracking angle) adjustment and subcounterweight enable the use of a broad range of other cartridges.
Design
The AT-LP8X plays 33-1/3, 45, and 78* RPM records. Its 25 mm rubber-damped, anti-resonance, die-cast aluminum platter comes with a 2.5 mm rubber mat and is driven by a sensor-monitored motor that ensures a continuously accurate platter rotation speed. The motor and its efficient internal switching power supply are housed within a box plinth constructed of 16 mm MDF (medium density fiberboard) and equipped with height-adjustable feet for excellent protection against unwanted noise and vibration.
Output levels (PHONO): 4.0 mV nominal at 1 kHz, 5cm/sec

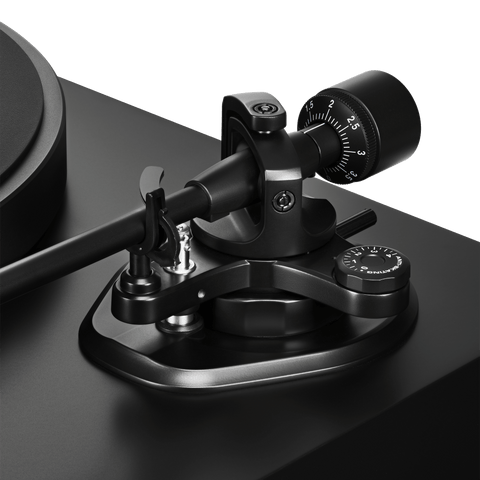

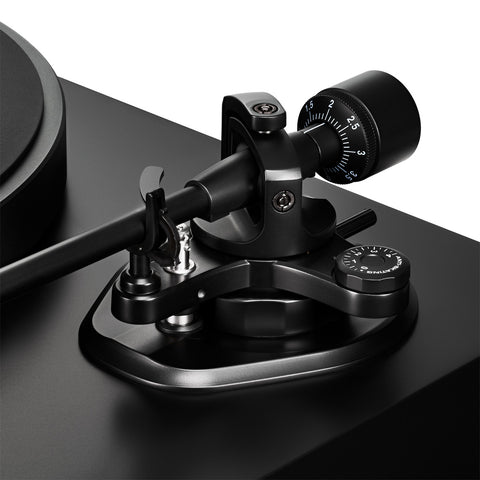

Tonearm
Type: Static balanced J-shaped tonearm
Effective length: 247 mm (9.7”)
Overhang: 15 mm (0.59”)
Maximum tracking error angle: Less than 2.0°
Stylus pressure adjustment range: 0.0 to 4.0 g
Applicable cartridge weight range
Including headshell: 14.0 to 20.0 g
When using subcounterweight: 17.5 to 23.5 g

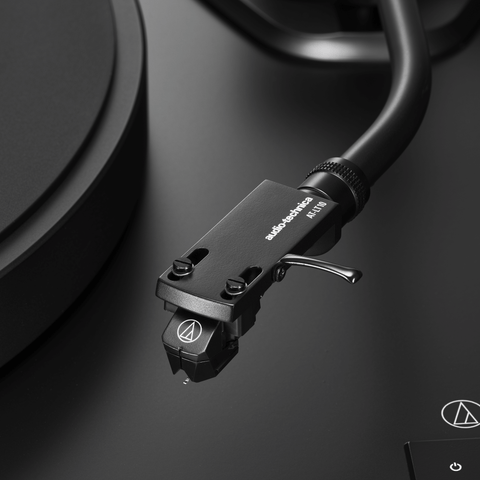

Cartridge and Headshell
Cartridge model: AT-VM95E BK
Cartridge type: VM
Recommended load impedance: 47,000 ohms
Output voltage: 4.0 mV (mV at 1 kHz, 5 cm/sec)
Stylus: 0.3 × 0.7 mil elliptical bonded
Cantilever: Aluminum pipe
Tracking force range: 1.8 to 2.2 g (standard 2.0 g)
Cartridge weight: 6.1 g (0.22 oz)

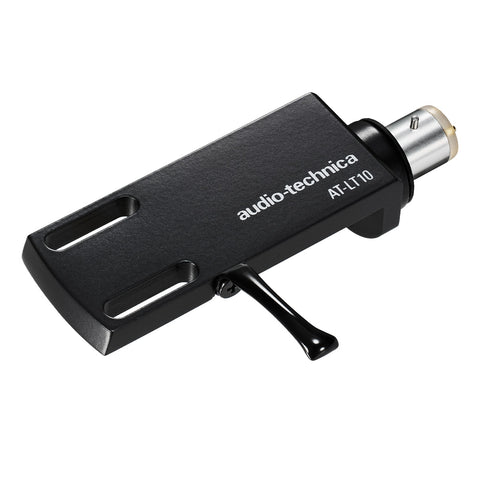

Headshell model: AT-LT10
Headshell weight
Approx. 10.7 g (0.38 oz) (including lead wires)
Approx. 10.0 g (0.35 oz) (excluding lead wires)
Headshell overhang adjustment: + 5.5 mm to - 2.5 mm (when using AT-VM95E)
General
Dimensions (W x H x D): 18” × 6.3” x 14”
Weight: Approx. 23 lbs.
Power supply requirements: 240 V, 50/60 Hz
Power consumption: 8 W
Replacement stylus (sold separately): AT-VMN95E BK
Replacement headshell: AT-LT10 (sold separately)
