DESCRIPTION

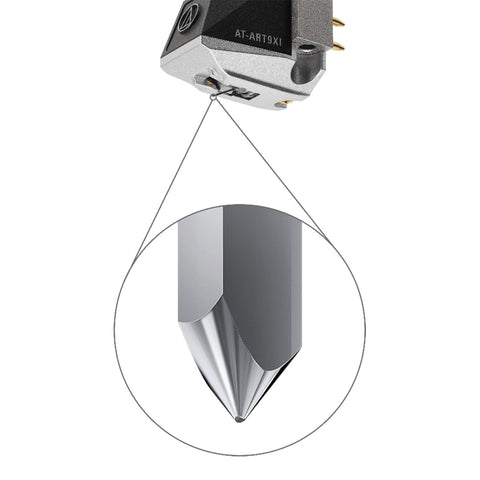

Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge.
Features
Flagship Magnetic Core Moving Coil Cartridge
Specially Designed Magnetic Circuit
PCOCC Coils Ensure High-Fidelity Transmission
Dual Moving Coils Provide High Separation & Wide Response
Machined Aluminum Base
Special Line Contact Stylus
Easy Installation to a Headshell or Integrated Tonearm
ART
The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that they give only to their flagship phono cartridges. The specially designed magnetic circuit boasts an output voltage of 0.5 mV (1 kHz, 5 cm/sec), making the cartridge easy to use and capable of reproducing even the most delicate expressions, while also ensuring dynamic playback. The AT-ART9XI has also been designated an Audio-Technica Excellence Product, a recognition that identifies products that meet their highest standards of high-fidelity performance.
SPECIFICATIONS
Frequency Response: 20-50,000 Hz
Channel Separation: 30 (dB at 1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
Stylus Construction: Nude
Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 25 µH (1 kHz)
Output Voltage: 0.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance: 0.5 dB (1 kHz)
Stylus Shape: Special line contact
Cantilever: 0.28 mm diameter solid boron
Static Compliance: 25 x 10-6 cm/dyne
Dynamic Compliance: 15 x 10-6 cm/dyne (100 Hz)
Mounting: Half-inch
Cartridge Weight: 8.5 g (0.30 oz)
Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
Threaded Hole: M2.6 x 2
