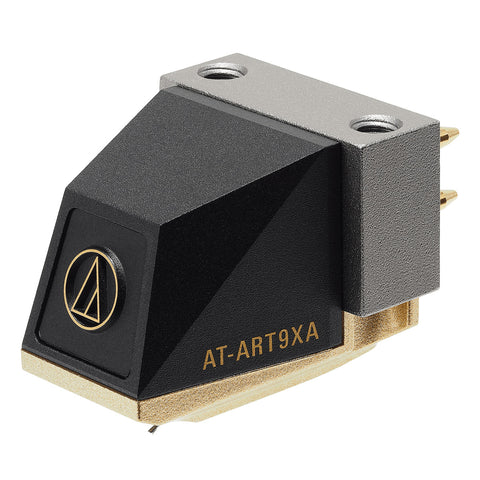

Audio-Technica AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core
$1,699.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.
Features
Shibata stylus
Neodymium magnet
Superior Spatial Representation
Dual Moving Provide High Separation and Wide Response
Clear Sound Localization and Minimal Distortion
PCOCC coils ensure high-fidelity transmission
Machined aluminum base provides excellent playback stability
Easy installation to a headshell or integrated tonearm
ART
The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that they give only to their flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.
SPECIFICATIONS
Frequency Response: 20-50,000 Hz
Channel Separation: 30 (dB at 1 kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
Stylus Construction: Nude
Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
Coil Impedance: 12 ohms (1 kHz)
DC Resistance: 12 ohms
Coil Inductance: 2.5 µH (1 kHz)
Output Voltage: 0.2 mV (1 kHz, 5 cm/sec.)
Output Channel Balance: 0.5 dB (1 kHz)
Stylus Shape: Shibata
Cantilever: 0.28 mm diameter solid boron
Static Compliance: 20 x 10-6 cm/dyne
Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
Mounting: Half-inch
Cartridge Weight: 8.5 g (0.30 oz)
Dimensions (W x H x D): 16.8 mm (0.66") x 17.3 mm (0.68") × 25.0 mm (0.98")
Threaded Hole M2.6 x 2
