DESCRIPTION

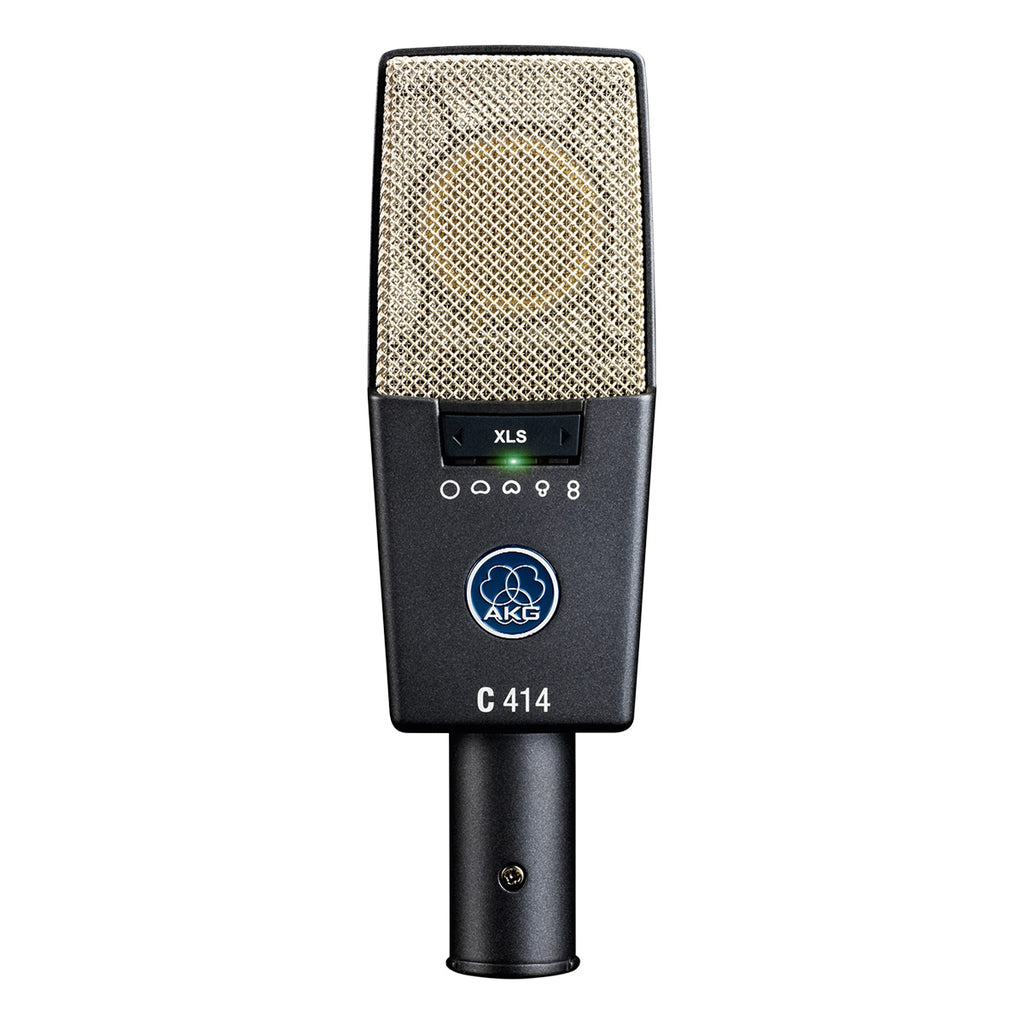

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use. The C414 XLS also maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.
Features
Engineered for Highest Linearity & Neutral Sound
Nine Selectable Polar Patterns
Three Attenuations Levels (-6, -12 ,-18 dB)
Three Different Switchable Bass-Cut Filters
Overload Warning with Audio Peak Hold LED
SPECIFICATIONS
Type: One-inch large diaphragm pressure gradient microphone
Polar Patterns: Nine, selectable
Open-Circuit Sensitivity: 23 mV/Pa / -33 dBV ± 0.5 dB
Frequency Range: 20 Hz – 20,000 Hz
Impedance: ≤ 200 ohms
Recommended Load Impedance: ≥ 2,200 ohms
Bass Cut Filter Slopes: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
Equivalent Noise Level to IEC 60268-4: 20 dB, 0 dB pre-attenuation
Equivalent Noise Level to IEC 60268-4, A-Weighted: 6 dB-A, 0 dB pre-attenuation
Signal-to-Noise Ratio re 1 Pa, A-Weighted: 88 dB
Max SPL for 0.5% THD: 200 / 400 / 800 / 1600 Pa = 140 / 146 / 152 / 158 dB SPL, 0 / -6 / -12 / -18 dB pre-attenuation
Dynamic Range: 134 dB minimum
Max Output Level: 5 V RMS / +14 dBV
Operating Temperature: -10°C to +60°C
Relative Humidity: 95% at +20°C; 85% at +60°C
Powering: 48 V phantom power to IEC 61938
Current Consumption: Approx. 4.5 mA
Connector: 3-pin XLR, pin 2 hot
Dimensions: 2 x 1.5 x 6.3"
Net Weight: 300 g / 10.6 oz.
