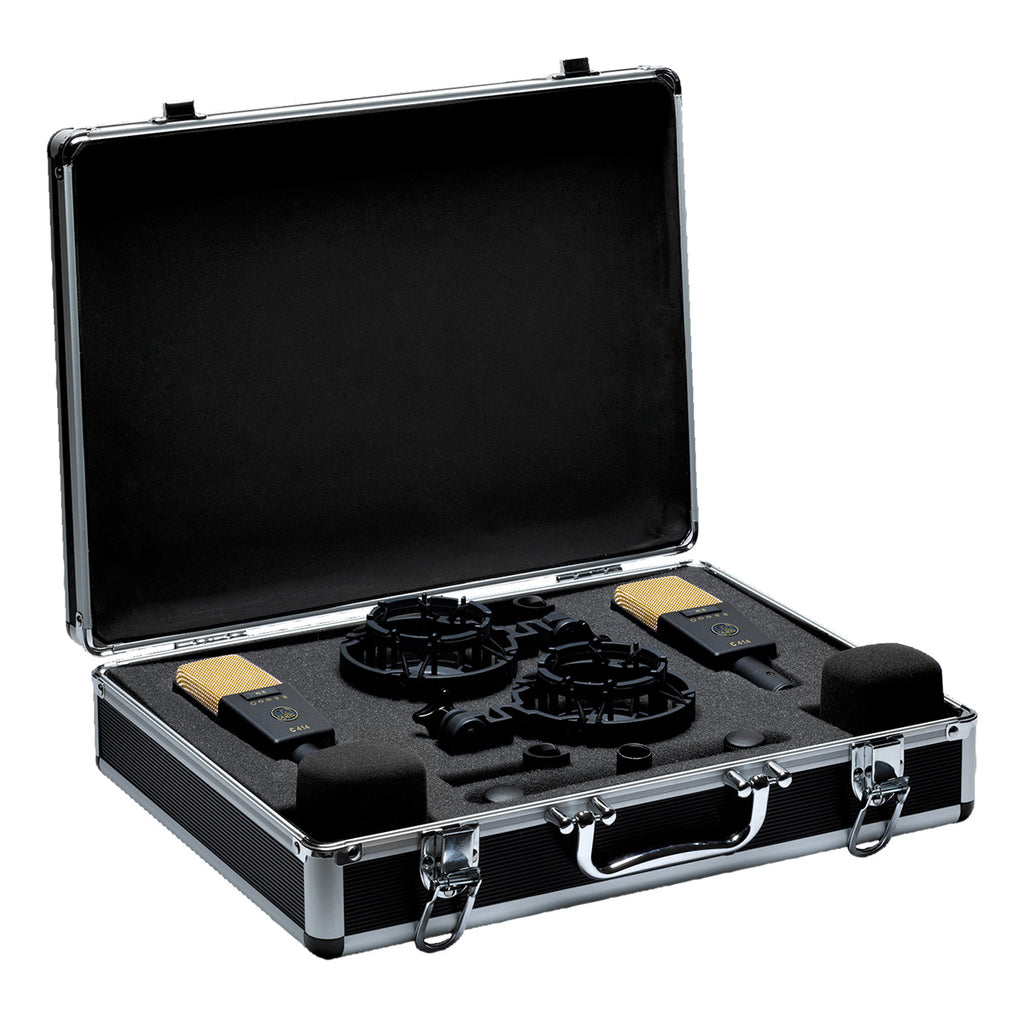

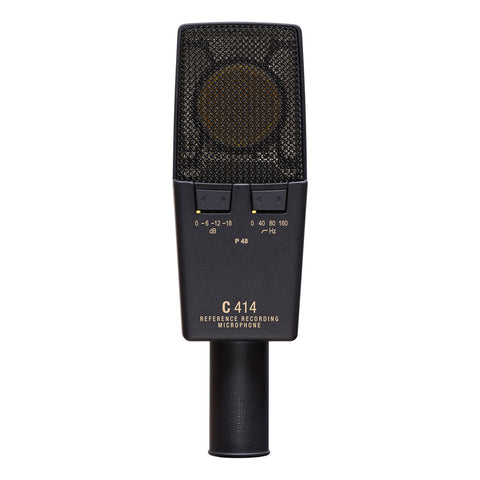

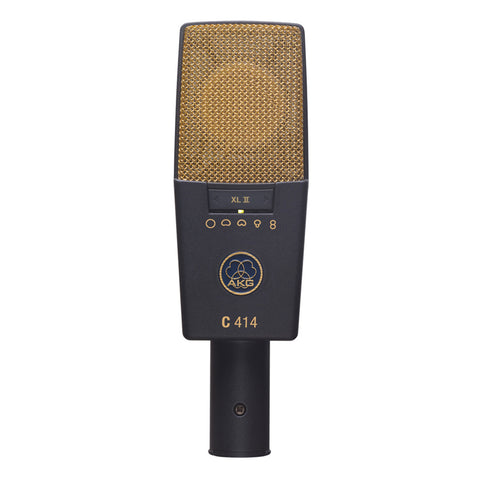

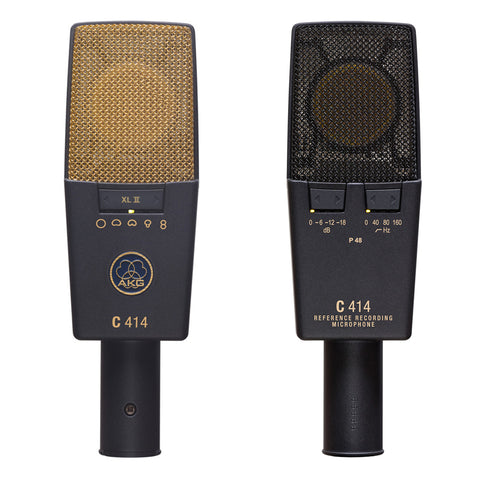

AKG C414 XLII Matched Pair Multi-Pattern Large-Diaphragm Condenser Microphones
Free standard shipping on all orders within the continental US.
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
SPECIFICATIONS
- Type: One-inch large-diaphragm pressure-gradient condenser microphone
- Polar Patterns: Nine, selectable
- Open-Circuit Sensitivity: 23 mV/Pa / -33 dBV ± 0.5 dB
- Frequency Range: 20 Hz – 20,000 Hz
- Impedance: ≤ 200 ohms
- Recommended Load Impedance: ≥ 2,000 ohms
- Bass Cut Filter Slopes: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
- Pre-Attenuation Pads: -6 dB, -12 dB, -18 dB, selectable
- Equivalent Noise Level to IEC 60268-4: 20 dB, 0 dB pre-attenuation
- Equivalent Noise Level to IEC 60268-4, A-Weighted: 6 dB-A, 0 dB pre-attenuation
- Signal-to-Noise Ratio re 1 Pa, A-Weighted: 88 dB
- Max SPL for 0.5% THD: 200 / 400 / 800 / 1600 Pa = 140 / 146 / 152 / 158 dB SPL, 0 / -6 / -12 / -18 dB pre-attenuation
- Dynamic Range: 134 dB minimum
- Max Output Level: 5 V RMS / +14 dBV
- Operating Temperature: -10°C to +60°C
- Relative Humidity: 95% at +20°C; 85% at +60°C
- Powering: 48 V phantom power to IEC 61938
- Current Consumption: Approx. 4.5 mA
- Connector: 3-pin XLR, pin 2 hot
- Dimensions: 1.5 x 2.0 x 6.3"
- Net Weight: 300 g / 10.6 oz.
SPECIFICATIONS
- Type: One-inch large-diaphragm pressure-gradient condenser microphone
- Polar Patterns: Nine, selectable
- Open-Circuit Sensitivity: 23 mV/Pa / -33 dBV ± 0.5 dB
- Frequency Range: 20 Hz – 20,000 Hz
- Impedance: ≤ 200 ohms
- Recommended Load Impedance: ≥ 2,000 ohms
- Bass Cut Filter Slopes: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
- Pre-Attenuation Pads: -6 dB, -12 dB, -18 dB, selectable
- Equivalent Noise Level to IEC 60268-4: 20 dB, 0 dB pre-attenuation
- Equivalent Noise Level to IEC 60268-4, A-Weighted: 6 dB-A, 0 dB pre-attenuation
- Signal-to-Noise Ratio re 1 Pa, A-Weighted: 88 dB
- Max SPL for 0.5% THD: 200 / 400 / 800 / 1600 Pa = 140 / 146 / 152 / 158 dB SPL, 0 / -6 / -12 / -18 dB pre-attenuation
- Dynamic Range: 134 dB minimum
- Max Output Level: 5 V RMS / +14 dBV
- Operating Temperature: -10°C to +60°C
- Relative Humidity: 95% at +20°C; 85% at +60°C
- Powering: 48 V phantom power to IEC 61938
- Current Consumption: Approx. 4.5 mA
- Connector: 3-pin XLR, pin 2 hot
- Dimensions: 1.5 x 2.0 x 6.3"
- Net Weight: 300 g / 10.6 oz.
