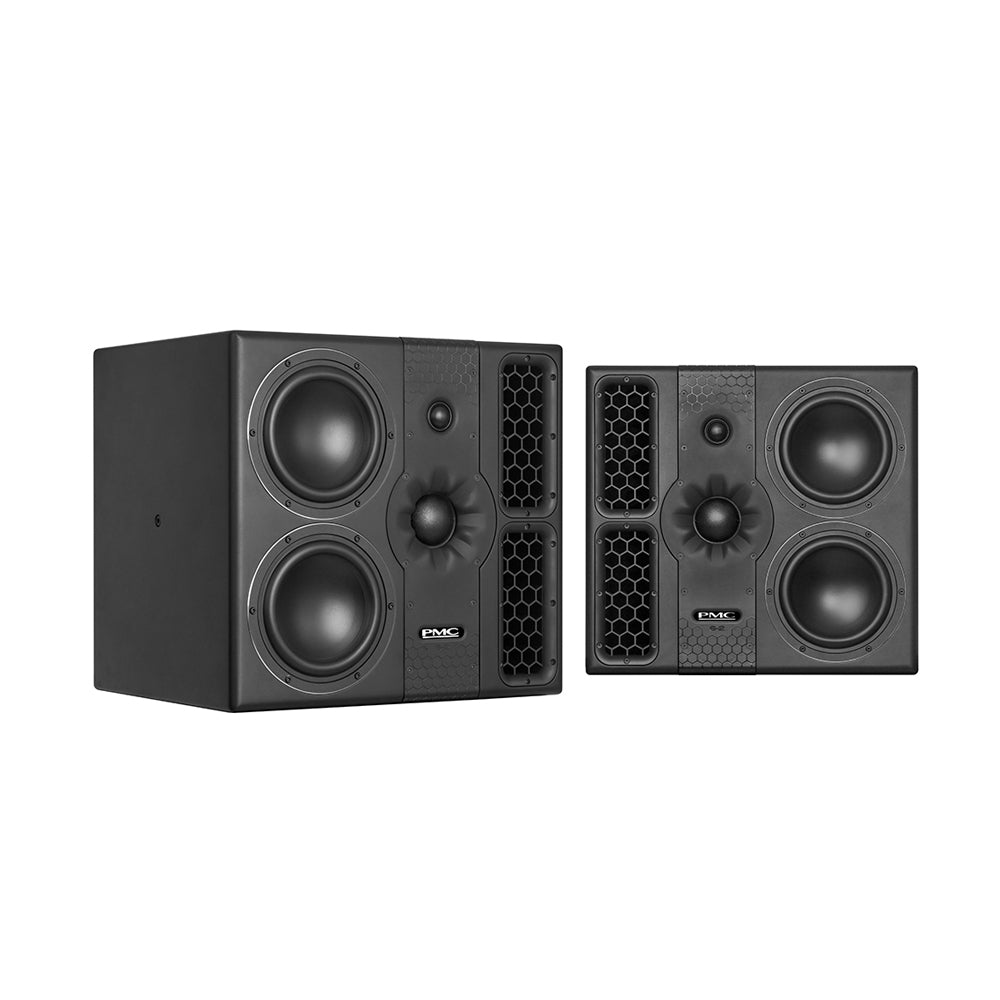

PMC Audio 6-2 Active 3-Way Monitor Bookshelf Speaker- Pair (Black)
$14,999.99
FREE SHIPPING
Free standard shipping on all orders within the continental US.
CONTACT YOUR NEAREST SHOWROOM
FOR CONCIERGE EXPERIENCE
Timonium - 410.308.1650
Columbia - 410.381.2100
Gaithersburg - 301.296.6202
check the code for any error
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
The PMC 6-2 Active 3-Way Monitor Bookshelf Speaker is a powerful nearfield to midfield reference monitor designed for critical mixing, mastering, and immersive audio environments. Delivering main-monitor scale from a compact footprint, the PMC 6-2 offers exceptional clarity, dynamic impact, and fatigue-free accuracy for confident mix decisions. Its advanced three-way active design pairs dual 6-inch ultra-long-throw bass drivers with PMC’s proprietary PMC55 2-inch soft-dome midrange and a precision 1-inch soft-dome tweeter. The PMC55’s N-compass waveguide ensures wide dispersion and a stable stereo image, while ATL™ (Advanced Transmission Line) bass loading and Laminair™ airflow technology provide deep, controlled low-frequency extension down to 33Hz with outstanding tonal consistency. Each driver is powered by dedicated Class-D amplification (4 × 400W) and managed by sophisticated DSP-based crossovers with full configuration via rear-panel controls or PMC’s SoundAlign™ network interface. The PMC 6-2 integrates seamlessly into multi-channel and immersive systems and can be upgraded to an XBD configuration with a PMC subwoofer for extended bass response down to 25Hz and increased headroom.
FEATURES
The PMC6-2 provides main-monitor scale, depth, and dynamics, and allows mix decisions to be made quickly, with absolute certainty and without fatigue.

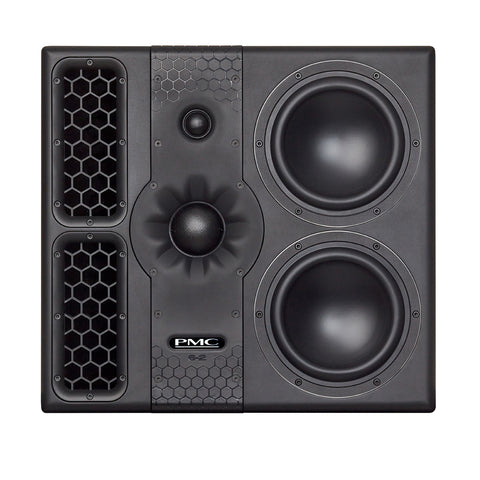

This 3-way active monitor speaker combines two custom 6-inch ultra-long-throw bass-drivers with our radically engineered PMC55 2-inch soft-dome mid-range unit and a precision-built one-inch soft-dome tweeter.
The PMC55’s distinctive ‘N-compass’ waveguide enhances the wide dispersion and remarkable mid-range projection of the driver; in combination with the high performance of the tweeter, the result is an ultra-wide and stable image, with a smooth and natural in-room response.
Each bass driver is individually powered by a cutting-edge 400W Class-D amplifier and seamlessly integrated by our sophisticated, highly accurate DSP-based crossovers. As with the PMC6, the monitor is configured using rear-panel controls or the browser-based SoundAlign™ software, with comprehensive boundary and EQ options.
The PMC6-2 offers astonishing size-to-performance ratio thanks to its ATL™ bass-loading technology, which results in exceptional LF extension and consistent tonal balance at all listening levels.
Our Laminair™ airflow technology, visible in the monitor’s hexagonal vent ducts, further reduces colouration and enhances dynamics and efficiency.
A simple upgrade path converts the PMC6-2 to a full-range XBD system; just add a PMC8.2 SUB and select XBD mode to perfectly dovetail the two units, extending the response down to 25Hz with additional headroom.
Active 3-way nearfield reference monitor with ATL™ bass loading
Frequency response: 33Hz - 25kHz (- 3dB @1m full space, on-axis)
Max. cont. SPL: 109dB @1m (Half space value calculated as +3dB from full space measurement.
Un-weighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Analogue / AES3 digital input (16/24-bit, 18 -192kHz sample rate)
Digital ‘through’ output (AES3 24-bit 96kHz)
SoundAlign™ network control interface for single or group EQ & settings
Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
PMC6-2 + PMC8-2 SUB = PMC6-2 XBD, with LF down to 25Hz & increased headroom

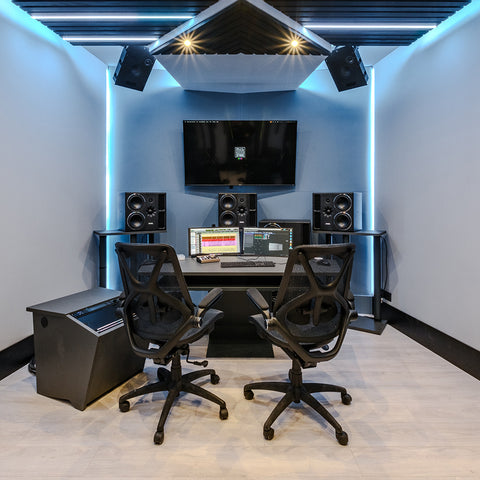

Ceiling-mount yoke allows suspension in multi-channel or immersive systems
TECHNICAL SPECS
Type: Active 3-way nearfield reference monitor with ATL™ bass loading
Drive Unit Complement: LF2 x PMC 150mm (6”) studio 6 drivers MF PMC 55mm (2”) soft dome mid-range HF PMC 27mm (1”) soft dome tweeter
Effective ATL™ Length: 2m (6.6ft)
Frequency Response: 33Hz - 25kHz (- 3dB) (@1m full space, on-axis)
Sensitivity: +4dBu input signal = 98dB SPL @ 1m
Max continuous SPL : 109dB @1m(Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Max Peak SPL :121dB @1m(Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Directivity: H+/-50 degreesV+60/-40 degrees (-6dB off axis @10kHz)

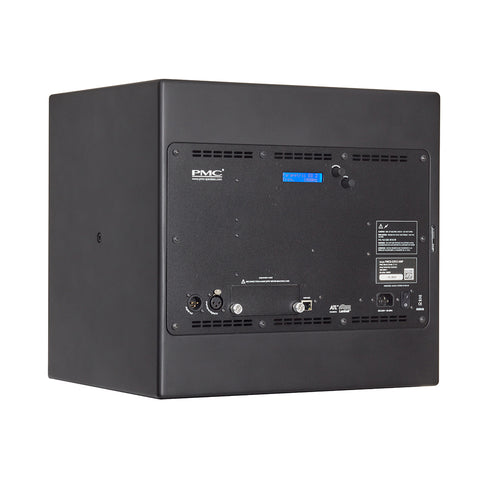

Input : XLR switchable between analogue & digital AES3Analogue input- +20/+24dBu max. input level (selectable)- 22K ohm input impedance Digital input- 16/24-bit AES3 signal, left, right or left + right- 18 - 192kHz Sample Rate- 110 ohm input impedance Expansion card slot- For future connectivity upgrades
Ouput :XLR digital AES3 (fixed 24-bit @ 96kHz)
Network :RJ45 for use with PMC SoundAlign web interface
