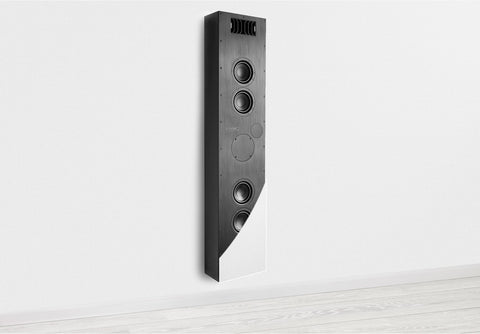

The PMC Audio CI140 Sub On-Wall is a high-performance on-wall subwoofer designed to deliver deep, controlled low-frequency extension for home theater, custom installation, and professional audio environments. Engineered to perfectly complement the PMC ci-series, it employs the same four bass drive units found in the CI140 loudspeaker, combined with PMC’s renowned ATL™ (Advanced Transmission Line) bass-loading technology for powerful, articulate bass with minimal distortion. Designed for both cinema impact and full-range music reproduction, the CI140 Sub enhances system dynamics without sacrificing clarity or speed. Its slim, architectural form factor allows for discreet on-wall installation, making it ideal for premium residential and studio spaces where performance and aesthetics matter equally. Installation is simple and precise using the included interlocking on-wall mounting bracket, which provides secure placement and fine level adjustment. When paired with compatible PMC ci-series speakers, the CI140 Sub On-Wall delivers a seamless, reference-grade low-frequency foundation for immersive audio systems.
*Black with White Grille
PMC Audio CI140 Sub On Wall (Black with White Grille)
- $6,000.00
- FREE SHIPPING
CONTACT YOUR NEAREST SHOWROOM
FOR CONCIERGE EXPERIENCE
Timonium - 410.308.1650
Columbia - 410.381.2100
Gaithersburg - 301.296.6202
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
The PMC Audio CI140 Sub On-Wall is a high-performance on-wall subwoofer designed to deliver deep, controlled low-frequency extension for home theater, custom installation, and professional audio environments. Engineered to perfectly complement the PMC ci-series, it employs the same four bass drive units found in the CI140 loudspeaker, combined with PMC’s renowned ATL™ (Advanced Transmission Line) bass-loading technology for powerful, articulate bass with minimal distortion. Designed for both cinema impact and full-range music reproduction, the CI140 Sub enhances system dynamics without sacrificing clarity or speed. Its slim, architectural form factor allows for discreet on-wall installation, making it ideal for premium residential and studio spaces where performance and aesthetics matter equally. Installation is simple and precise using the included interlocking on-wall mounting bracket, which provides secure placement and fine level adjustment. When paired with compatible PMC ci-series speakers, the CI140 Sub On-Wall delivers a seamless, reference-grade low-frequency foundation for immersive audio systems.
*Black with White Grille

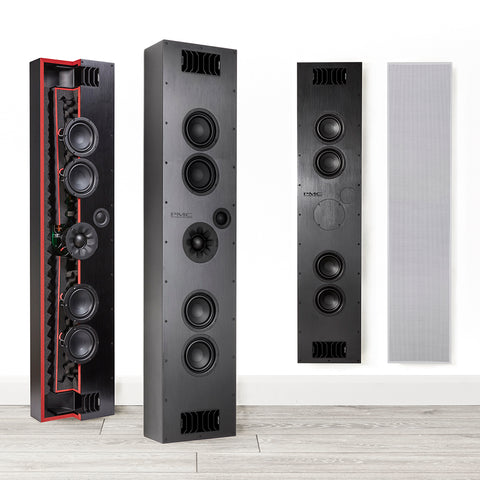

- The ci140 is complemented by the dedicated and identically sized ci140sub, for the apex in on-wall home theatre performance.
- Employing the same four bass drive units used in the ci140 and operating with the ATL, the sub reproduces additional low-frequency energy, perfect for home theatre installations and full-frequency music reproduction in high-end home audio and professional studio situations.

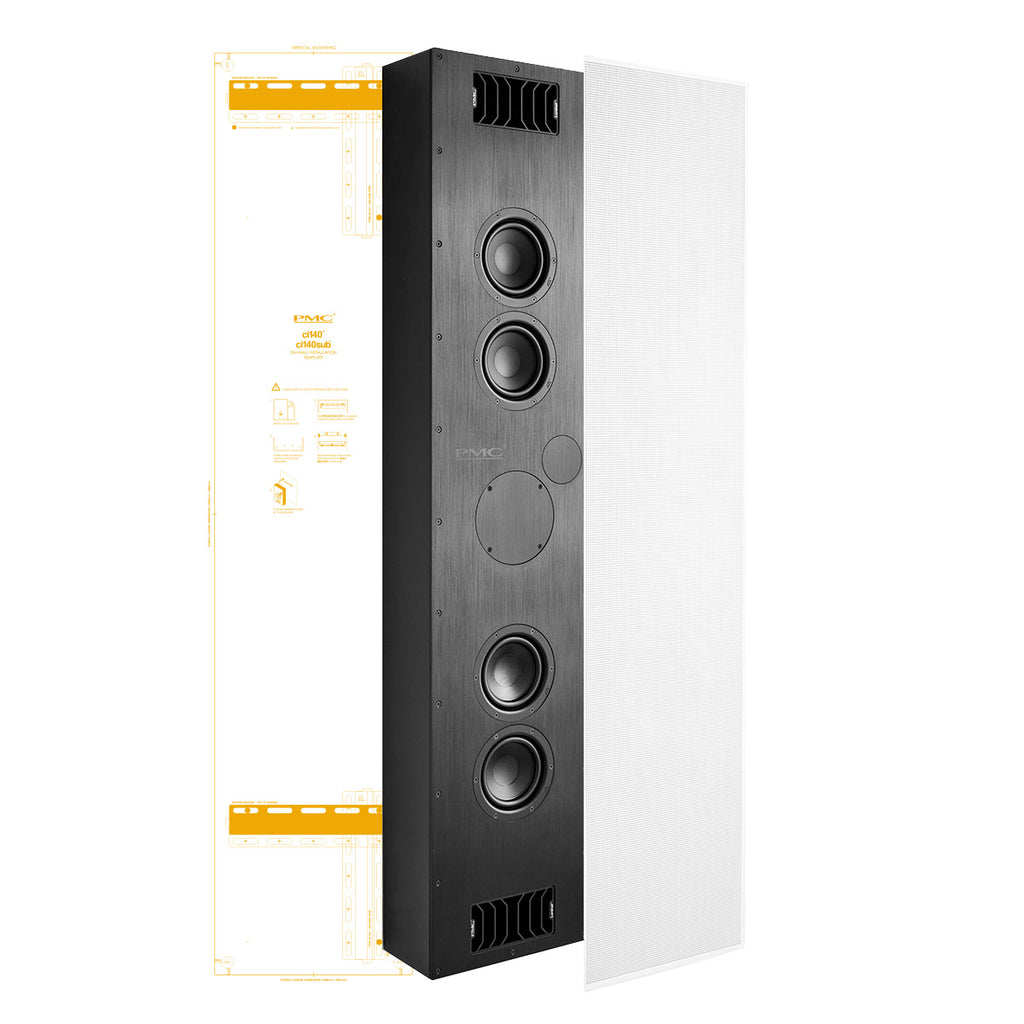

- On-wall mounting is just as straightforward as in-wall mounting, using the supplied interlocking bracket, which is designed to also offer pin-point level adjustment. For the ci30, ci45, ci90slim and ci65 an optional OWK - on-wall mounting kit in white or black may be fitted around the cabinets to conceal the in-wall mounting system creating an elegant and discrete on-wall loudspeaker.
- Frequency Response: 32Hz(-3dB), 29Hz(-6dB)
- Sensitivity:93dB (2.83v @1m)
- Recommended Amp Power: 40 - 300W
- Effective ATL™ Length: 2.3m (7.5ft)
- Impedance: 4 Ohms
- Drive Units: LF- 4 x 133mm (5.25”) Natural Fibre LTx™
- Input Connectors: 1 pair 4mm sockets
- Dimensions:
- H 1400mm (55″)
- W 300mm (11.8″)
- D 153mm (6″)
- Weight: Boxed – 32kg 70.5lbs
- Unboxed (with Grille) – 25.5kg 56.2lbs
- Without Grille – 23.5kg 51.8lbs
PRODUCT INFORMATION:
Model: | Barcode:
