DESCRIPTION

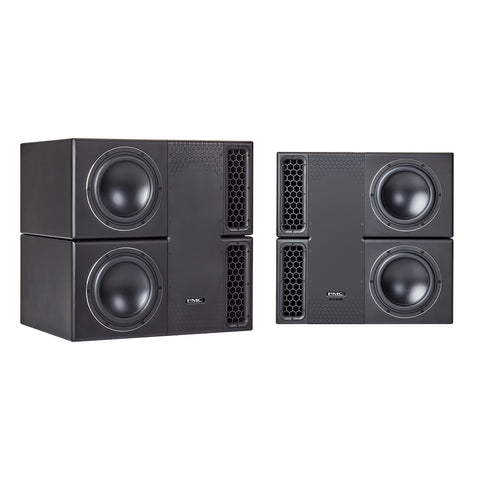

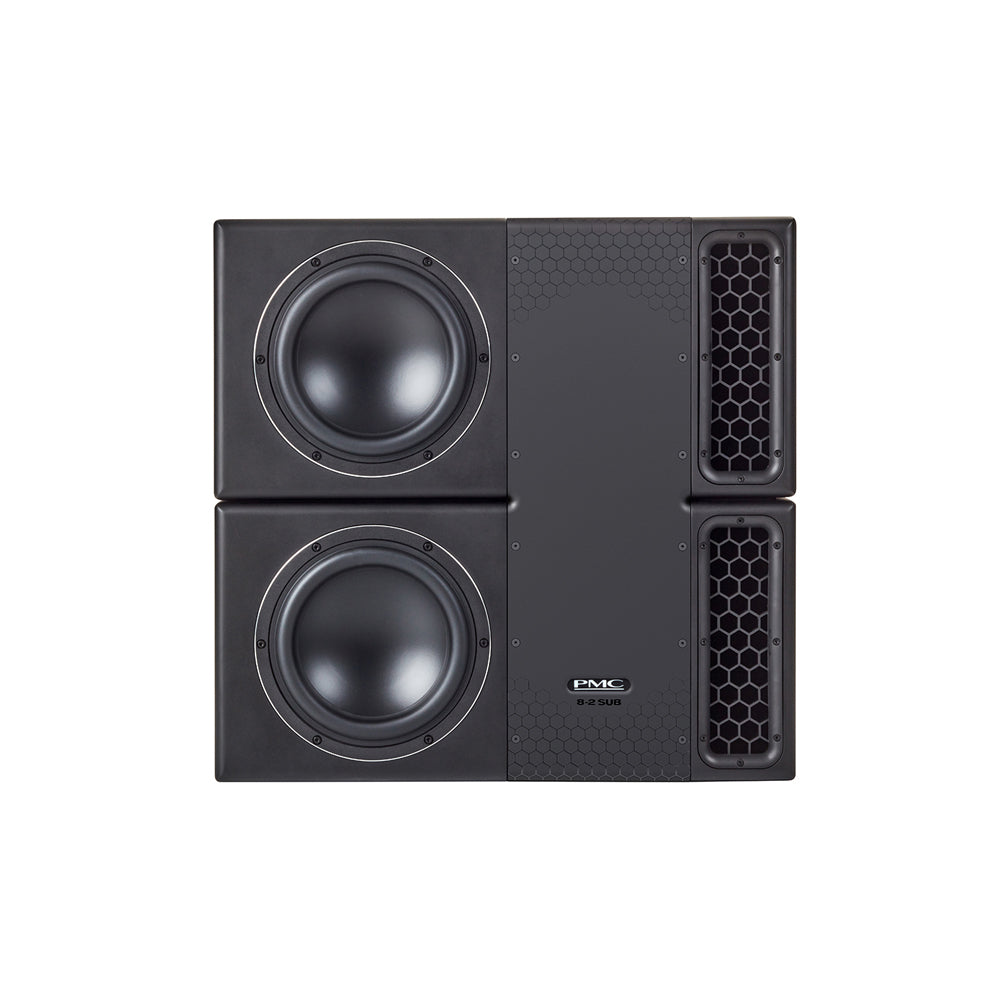

The PMC 8-2 Subwoofer is a full-bandwidth, reference-grade active subwoofer designed for the most demanding professional studio, broadcast, and immersive audio environments. Engineered to deliver deeper extension and higher output than the PMC8 SUB, it provides powerful, ultra-controlled low-frequency reproduction down to 25Hz, making it ideal for high-resolution monitoring systems. Equipped with twin 8-inch bass drivers powered by dual 400W high-efficiency Class-D amplifiers, the 8-2 SUB delivers exceptional dynamic range, accuracy, and headroom. PMC’s proprietary Advanced Transmission Line (ATL™) bass-loading technology ensures tight, distortion-free bass with outstanding transient response. Built on PMC’s proven DSP platform, the 8-2 Subwoofer offers extensive system tuning via rear-panel controls or LAN-based SoundAlign™ software, including crossover filters, EQ, delay, phase alignment, and protection. With analog and AES3 digital I/O, it integrates seamlessly into stereo, surround, and immersive audio systems. Available in left- or right-handed cabinet versions, the PMC 8-2 SUB can operate as a standalone subwoofer or as an Extended Bass Delivery (XBD) module when paired with PMC 6-2 or 8-2 monitors for maximum system performance.

PMC Audio 8-Subwoofer (Black)

$4,499.00
FREE SHIPPING

Free standard shipping on all orders within the continental US.

CONTACT YOUR NEAREST SHOWROOM

FOR CONCIERGE EXPERIENCE

Timonium - 410.308.1650

Columbia - 410.381.2100

Gaithersburg - 301.296.6202

Dedicated Support from Start to Finish

Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders

DESCRIPTION

FEATURES

Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)The PMC 8-2 SUB is a true low-frequency monitor like the PMC8 SUB and offering the same DSP engine and seamless integration with surround and immersive systems, the PMC8-2 SUB betters the spec of its smaller sibling, offering higher maximum SPL output down to 25Hz.
With the same dimensions as the PMC8-2 midfield monitor, the PMC8-2 SUB’s twin eight-inch bass drivers are powered by independent 400W Class-D amplifiers. The same configuration options are available as on the PMC8 SUB, likewise accessible on the speaker’s rear panel or by using the browser-based SoundAlign™ software via a LAN-connected tablet, smartphone or computer.
The PMC8-2 SUB can be used as a standalone subwoofer for multichannel and immersive sound systems, or as an XBD cabinet with either PMC6-2 or PMC8-2 s, creating a system of awesome power and dynamic range. The sub is available in either left- or right-handed cabinet versions (PMC8-2 SUB-L or PMC8-2 SUB-R), to allow placement of the bass drivers on the outside edges of a stereo array, matching the arrangement of the main monitors.
Active subwoofer with twin 8-inch bass drivers and ATL™ bass loading
Frequency response: 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
Max. cont. SPL: 115dB @1m (quarter space value calculated as +3dB from half space measurement.
Unweighted input,20-20kHz
State-of-the-art Class-D amplifier: 2 x 400W
Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
Digital ‘through’ output (AES3 24-bit, 96kHz)
SoundAlign™ network control interface for single or group EQ & settings
Sophisticated DSP driver protection, EQ, and delay/phase options
Dedicated XBD configuration mode

TECHNICAL SPECS

Type: Active subwoofer with twin 8-inch bass drivers and ATL™ bass loading
Drive Unit Complement: LF PMC 200mm (8”) studio 8 driver
Effective ATL™ Length: 3m (9.8ft)
Frequency Response: 25Hz - 500Hz (- 3dB) (@1m full space, on-axis)
Sensitivity: +4dBu input signal = 98dB SPL @ 1m
Max continuous SPL :115dB @1m(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
Max Peak SPL :121dB @1m(Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

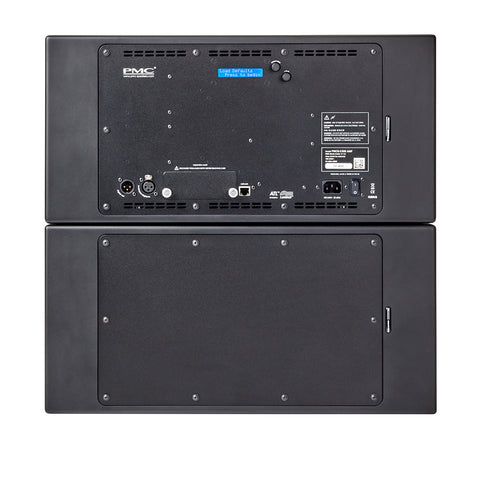

Input :XLR switchable between analogue & digital AES3Analogue input- +20/+24dBu max. input level (selectable)- 22K ohm input impedance Digital input- 16/24-bit AES3 signal, left, right or left + right- 18 - 192kHz Sample Rate - 110 ohm input impedance Expansion card slot- For future connectivity upgrades
Output :XLR digital AES3 (fixed 24-bit @ 96kHz)
Network :RJ45 for use with PMC SoundAlign web interface
Features :Level Trim (+/-10dB)High-pass/Low-pass filter (20 - 200Hz, 12dB/Oct)Delay (0 - 30mS) Phase (normal or inverted)LF & HF shelving filters (20Hz - 20kHz, +/- 10dB, Q 0.707)Parametric EQ (5 bands, 20Hz - 20kHz, +/- 10dB)User presets (3 + factory defaults
Latency :2.4mS
Amplifier Power per Channel: 300Wrms
Mains :100 - 240VAC auto-switching, 50-60Hz (IEC C14)
Power consumption (idle) :25W
Power consumption (max) :300W
Dimensions:
H 534mm (21”)
W 551mm (21.7”)
D 440mm (17.3”)
Weight:37.5kg (82.7lbs) each

PRODUCT INFORMATION:

Model: | Barcode:
