Panamax PM family’s highest level of power filtration plus voltage regulation ensure components receive a consistent level of clean power. Improves picture and sound quality by eliminating noise across the entire AC bandwidth.
FEATURES
- Feature Sheet
- Clean power level 4+
- Voltage regulation
- Automatic voltage monitoring (AVM)
- High current outlets
- USB charger
- Gaming LAN port
- 5 isolated outlet banks
- 12 volt trigger
- Power sequencing
- 11 outlets
TECHNICAL SPECS
- Weight: 20 lbs
- Rack Ears: Included
- Dimensions: 17"w x 12.75"d x 3.5"h , (4.1" including feet)
- AC Power:
- UL1449 Suppression Rating: 330V
- Thermal Fusing: Yes
- Protection Modes: L-N, L-G, N-G
- Power Cord: 10 ft detachable
- Peak Impulse Current: 72,000 A
- Maximum Current Rating: 15 A
- Line Voltage: 120V, 60Hz
- Initial Clamping Level: 200V
- Energy Dissipation: 2125 Joules
- Catastrophic Surge Circuit: Yes
- Auto-Resetting Under-voltage shutoff: 86V ± 6V
- Auto-Resetting Over-voltage shutoff: 142 VAC ± 8 VAC
- EMI/RFI Noise Filtration:
- Banks: 1, 2, 3, 4 80 db, 100 KHz − 2 MHz
- Bank 5, High Current Outlets: 60 db, 100 KHz − 2 MHz
- Voltage Regulation: (Banks 1-4)
- Power / Current: 1500 VA / 12A
- Output Voltage Range: 120 VAC ± 6 VAC
- Input Voltage Range: 100-136 VAC
- Buck Stage: reduces voltage in the 125-136 V range
- Boost Stage 2: boosts voltage in the 100-109 V range
- Boost Stage 1: boosts voltage in the 109-119 V range
- DC Trigger Input:
- Voltage and Polarity: 3 - 24V DC, Bidirectional
- Jacks: 3.5mm (1/8" mono mini-plug)
- Current Requirement: 4.6 mA @3V, 58 mA @24V
- DC Trigger Output: Positive = Tip, Negative = Ring
- Pass through: No delay
- LAN Circuits:
- Wires Protected: 8-Wires
- Connectors: RJ-45
- Compatibility: 10/100bT
- Clamping Level: 52V
- USB Circuit:
- Power Delivery: 500 mA @ 5VDC
- Jacks: USB-A
- Telco Protection:
- Wires Protected: 2-Wire, Pins 4 & 5
- Suppression Modes: Metallic & Longitudinal
- Fuseless/Auto-resetting: Yes
- Connectors: RJ-11
- Clamping Level: 260V
- Capacitance: 30pf (approx.)
- Universal Coax Protection:
- Shielded: Yes
- Insertion Loss: < 0.5 dB
- HD 1080 i/p Ready: Yes
- Frequency Range: 0 MHz - 2.2 GHz
- Connections: Female "F", Gold Plated
- Clamping Level: 75V
- Bidirectional: Yes
PRODUCT INFORMATION:

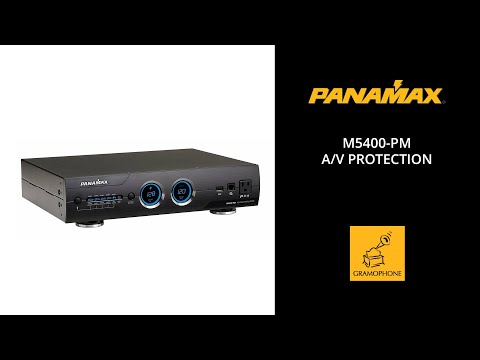

Model: M5400-PM | Barcode: 050616008150
