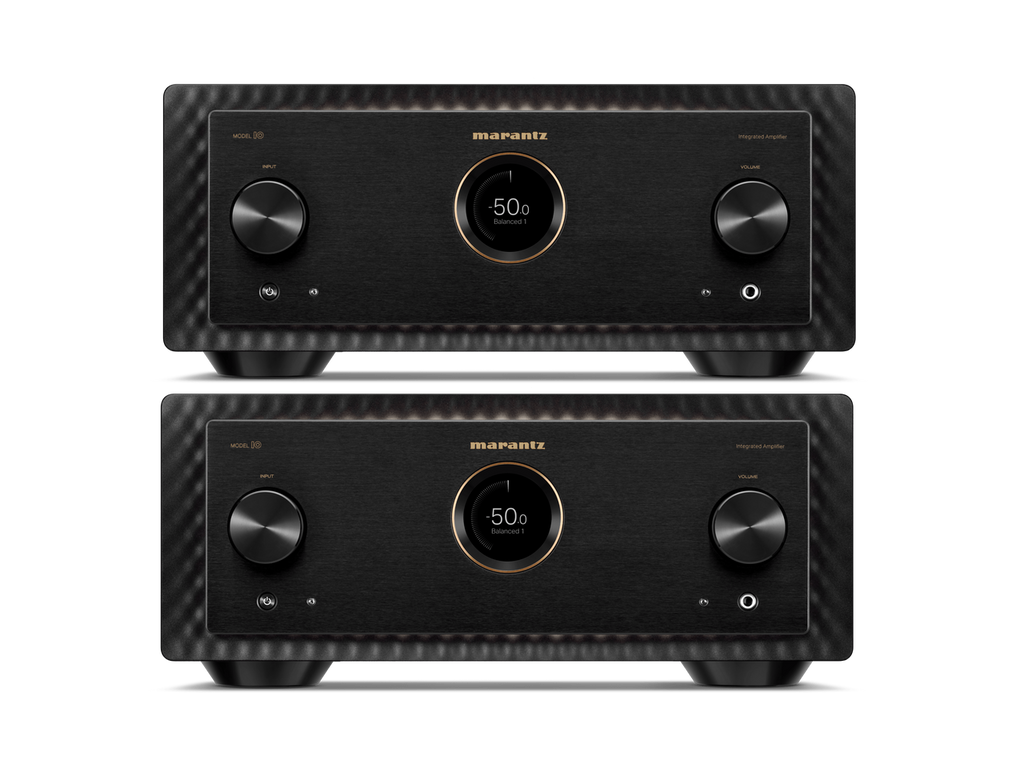

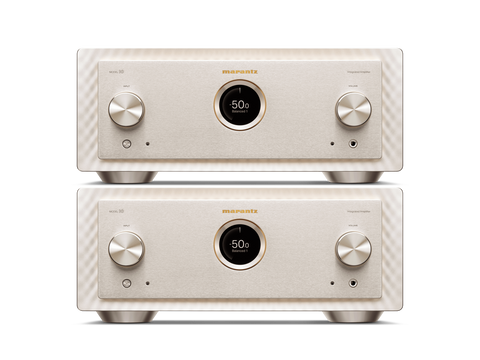

Marantz MODEL 10 Reference Integrated Amplifier Bundle

DESCRIPTION

This bundle includes (2) Marantz MODEL 10 Reference Integrated Amplifier

MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.

Marantz MODEL 10 Reference Integrated Amplifier Bundle

$28,000.00
Regular price $30,000.00
Save $2,000.00 (6%)
FREE SHIPPING

Free standard shipping on all orders within the continental US.

CONTACT YOUR NEAREST SHOWROOM

FOR CONCIERGE EXPERIENCE

Timonium - 410.308.1650

Columbia - 410.381.2100

Gaithersburg - 301.296.6202

Dedicated Support from Start to Finish

Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders

DESCRIPTION

This bundle includes (2) Marantz MODEL 10 Reference Integrated Amplifier

MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.

FEATURES

2 Channels
250 Watts per Channel
All-New Marantz SMPS
Fully balanced dual mono amplifiers
Phono MM/MC
Copper-plated chassis

TECHNICAL SPECS

Rated Output Power
250W + 250W (8ohm,20Hz-20kHz,THD 0.05 %)
500W + 500W (4ohm,20Hz-20kHz,THD 0.05 %)
General
Unit Dimensions (W × H × D): 17.32” × 7.56” × 18.62”
Net weight: 74.29 lbs.
Audio
Speaker Impedance: 4~16ohm
Frequency Response
5Hz~60kHz +0dB/-3dB
20Hz~20kHz +0dB/-0.3dB
Total Harmonic distortion: 0.005% (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD)
Damping Factor: 500 (8ohm, 20Hz-20kHz)
Input Sensitivity: Phono input
MM: 3.6 mV / 36 kohm
MC (Low): 400 µV / 33 ohm
MC (Mid): 400 µV / 100 ohm
MC (High): 400 µV / 390 ohm
RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
MM : 80mV
MC : 8mV
Input Sensitivity: CD/LINE/RECORDER
350 mV/41kohm (Unbalanced)
700 mV/36kohm
Input Sensitivity: Power Amp input
Unbalanced: 1.58V / 41kohm (Gain : 29dB)
Balanced: 3.16V / 15kohm (Gain : 24dB)
SN Ratio
PHONO (MM): 88dB
PHONO (MC): 76dB
CD: 122dB
Balanced: 122dB
Tone Control
BASS : 50Hz ±10dB
TREBLE : 15kHz ±10dB
Power Consumption: 270W (0.1W at Standby)
Audio Feature
Power Amplifier Circuit: Switch Mode BTL
Power Trans: Toroidal transformer in shielding case for preamplifier section only
SMPS for Power amplifier: L/R independent
Pre Amplifier Circuit New HDAM High Grade, Full balance
Volume: Electric / Variable gain
Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
Type of Tone Control: Electric
Headphone Circuit: HDAM-SA2+ Diamond buffer
Source Direct: Yes
Power amp mode turn off Pre-Amp power supply: Yes
Mono mode: Yes, Switch Stereo / Bi-Amp on Rear Panel
Connectivity
Phono Input: Yes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
PHONO (MC Low): 400 µV / 33O
PHONO (MC Mid): 400 µV / 100O
PHONO (MC High): 400 µV / 390O
PHONO (MM): 3.6 mV / 39kO
Analog Input (include Phono) / REC Out (RCA): 4 /1
Balanced XLR input: 2
Power Amp Direct Yes [RCA (Thick nickel plated independent terminals)/ XLR]
Pre out Yes [RCA (Thick nickel plated independent terminals)/ XLR]
2 sets of Speaker Output: Yes (Bi-wiring)
Speaker Terminal: Marantz Original SPKT-100+, 2 (High quality and high-purity copper plated)
Headphone Output: 1
Remote Control Bus Terminal: Yes (RC-5 In / Out)
Remote Internal / External Switch: Yes
Flasher Input: Yes
AC Inlet: Yes
Other: F.C.B.S. (Floating Control Bus System)

PRODUCT INFORMATION:

Model: MODEL10/U1BPR | Barcode: 632665614263
