The Lyngdorf MP-60 2.1 is a reference-class surround processor designed for uncompromising home cinema performance. Supporting up to 16 native audio channels, it decodes Dolby Atmos®, DTS:X® Pro, and AURO-3D® with precision digital signal processing. Equipped with HDMI 2.1, the MP-60 2.1 delivers full 8K video passthrough, HDR10+, Dolby Vision™, VRR, ALLM, and eARC for seamless integration with modern sources and displays. Built in Denmark, it features Lyngdorf’s acclaimed RoomPerfect™ room correction, ensuring an immersive, perfectly balanced sound experience in any space.
Lyngdorf MP-60 2.1 Surround Processor with RoomPerfect
$14,999.00
FREE SHIPPING
Free standard shipping on all orders within the continental US.
CONTACT YOUR NEAREST SHOWROOM
FOR CONCIERGE EXPERIENCE
Timonium - 410.308.1650
Columbia - 410.381.2100
Gaithersburg - 301.296.6202
check the code for any error
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
The Lyngdorf MP-60 2.1 is a reference-class surround processor designed for uncompromising home cinema performance. Supporting up to 16 native audio channels, it decodes Dolby Atmos®, DTS:X® Pro, and AURO-3D® with precision digital signal processing. Equipped with HDMI 2.1, the MP-60 2.1 delivers full 8K video passthrough, HDR10+, Dolby Vision™, VRR, ALLM, and eARC for seamless integration with modern sources and displays. Built in Denmark, it features Lyngdorf’s acclaimed RoomPerfect™ room correction, ensuring an immersive, perfectly balanced sound experience in any space.
FEATURES
16 native audio channels – Advanced decoding for Dolby Atmos®, DTS:X® Pro, and AURO-3D®.
RoomPerfect™ calibration – Optimizes sound performance for any room.
HDMI 2.1 connectivity – 5 inputs, 2 outputs with eARC, QMS, and Dynamic Lip-Sync.
8K & HDR support – Passes HDR10+, Dolby Vision™, VRR, ALLM, and HDMI dynamic HDR.
Reference build quality – Designed and engineered in Denmark for premium performance.
TECHNICAL SPECS
Decoding:16 decoding/upmixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), all legacy codecs
Post processing options:Dolby Surround, AURO-MATIC®, DTS Neural:X
Audio inputs:5 x HDMI (1 x HDMI eARC) ≤192kHz/24bit, 1 x AES/EBU S/P-DIF input (≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™
Audio outputs:16 x XLR analog outputs (8 Vrms max.), 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit)
Audio specifications:Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz
EQ:RoomPerfect, Subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q
Media player:Internet radio (vTuner, airable), AirPlay 2, Spotify Connect, Tidal Connect with Dolby Atmos Music, Roon Ready, DLNA Support of FAT32 based media storage (uPnP/see DLNA formats)
Video inputs:5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode (ALLM) support. accepts HDR, Dolby VisionTM and HLG
Video outputs:2 x HDMI (HDCP 2.3)

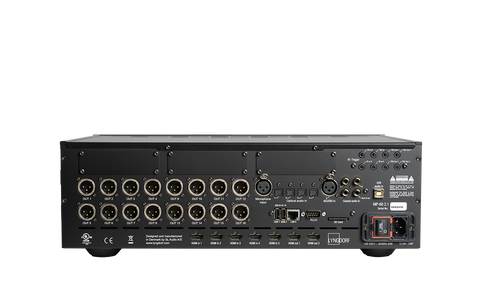

Control interfaces:1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for system software and settings)
Accessories included:RoomPerfect microphone, Microphone stand, Microphone cable, RF remote control
Optional module:16 channel DCI-compliant digital AES/EBU input for movie servers (supports up to 32bit/192kHz), 16 channel digital AES/EBU output module (always 24bit, 48kHz or 96kHz Selectable), 16 channel AES67 digital input/output module (supports up to 32bit/192kHz input, output is always 24bit/48kHz)
Remote control:Infrared/RF
Standby power consumption: < 0.5W
Heat dissipation value: 340 BTU
Placement options: Rack mount (4RU) or freestanding
Dimensions (H x W x D): 14.7 x 45.0 x 37.0 cm, 5.8 x 17.7 x 14.6 in
