The Luxsin X8 Intelligent Desktop DAC & Headphone Amplifier is a cutting-edge solution for audiophiles seeking reference-level sound and advanced customization. Featuring eight Cirrus Logic CS43198 DAC chips in a true dual-mono parallel architecture, the X8 delivers exceptional dynamic range, ultra-low noise, and precise stereo imaging. Its dedicated shielding and high-speed clock synchronization ensure clean, stable playback with minimal jitter and interference.
Powered by a custom Digital Audio Core with dual-core DSP and ARM architecture, the X8 enables real-time audio processing, AI-assisted EQ tuning, and Luxsin’s proprietary HP-EQ system—supporting over 2,500 headphone models for personalized sound aligned to Harman or custom curves. Comprehensive DSP tools like crossfeed, stereo width adjustment, and loudness optimization further refine your listening experience.
With a high-output amplifier stage, smart impedance detection, and a fully isolated linear power supply, the X8 effortlessly drives demanding headphones. Its sleek CNC aluminum chassis, touchscreen interface, and versatile connectivity make it a premium, future-ready desktop audio hub.

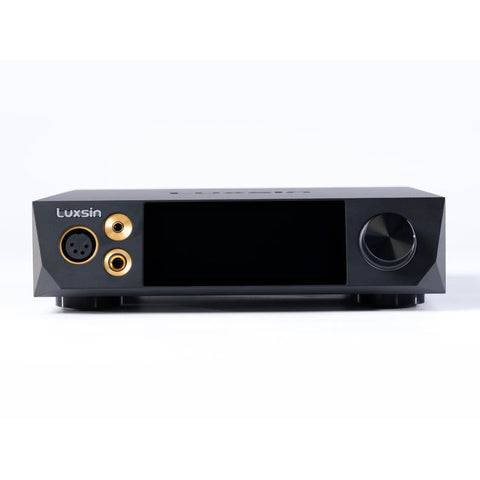

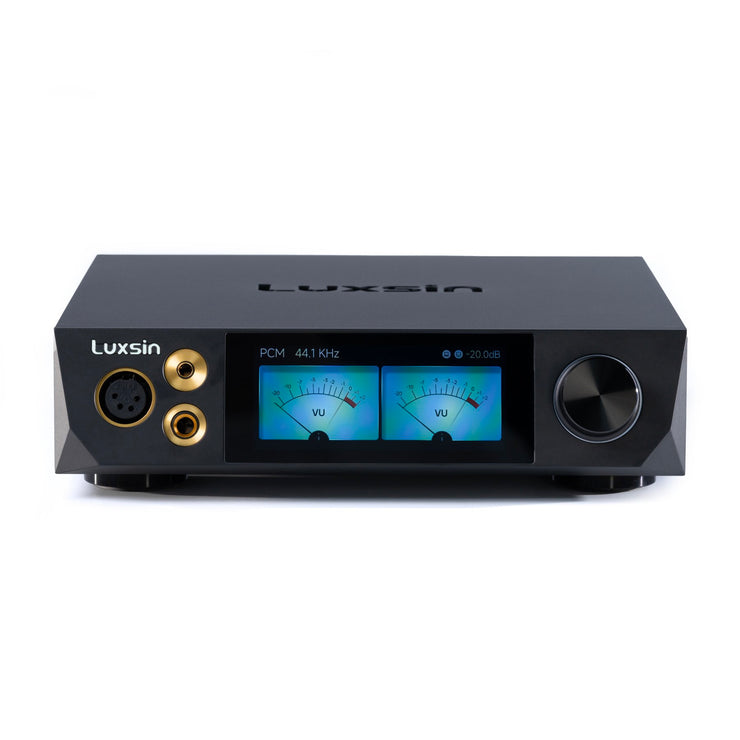

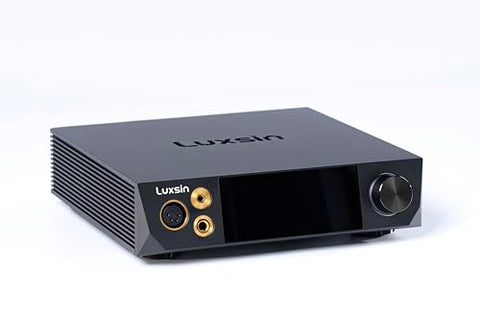

Luxsin X8 Intelligent Desktop DAC & Headphone Amplifier (Black)
mon0000025871
B0GYNPWXXW
- $699.00
- FREE SHIPPING
Dedicated Support from Start to Finish
- Concierge-Level Experience tailored to your needs
- Assistance with Troubleshooting and Product Insights
- Expert help for Product Set-Up
- Free Shipping on all orders
The Luxsin X8 Intelligent Desktop DAC & Headphone Amplifier is a cutting-edge solution for audiophiles seeking reference-level sound and advanced customization. Featuring eight Cirrus Logic CS43198 DAC chips in a true dual-mono parallel architecture, the X8 delivers exceptional dynamic range, ultra-low noise, and precise stereo imaging. Its dedicated shielding and high-speed clock synchronization ensure clean, stable playback with minimal jitter and interference.
Powered by a custom Digital Audio Core with dual-core DSP and ARM architecture, the X8 enables real-time audio processing, AI-assisted EQ tuning, and Luxsin’s proprietary HP-EQ system—supporting over 2,500 headphone models for personalized sound aligned to Harman or custom curves. Comprehensive DSP tools like crossfeed, stereo width adjustment, and loudness optimization further refine your listening experience.
With a high-output amplifier stage, smart impedance detection, and a fully isolated linear power supply, the X8 effortlessly drives demanding headphones. Its sleek CNC aluminum chassis, touchscreen interface, and versatile connectivity make it a premium, future-ready desktop audio hub.
- Built around 8 Cirrus Logic CS43198 DAC chips
- Up to 4800mW + 4800mW headphone output power
- Proprietary Digital Audio Core processing module
- Featuring the world's first AI assisted EQ tuning
- Store up to 50 unique headphone profiles
- Input Power: AC 100-120V/220-240V~50/60Hz
- Display: 4' LCD （480*960）Touchscreen
- DAC: Cirrus Logic CS43198 × 8
- Power Supply: Ultra-low-noise, voltage-adjustable Linear Power Supply
- WiFi: Wi-Fi 2.4GHz / 5GHz
- Bluetooth: Qualcomm SXW5125 (BT 5.1)
- Control Methods: Touchscreen, Mobile APP (Android/iOS), Web Browser, IR Remote(Optional)
- Rated Power: 25W
- Packing List: Power Cable ×1, USB-B cable ×1, 3.5mm to 6.35mm adapter ×1

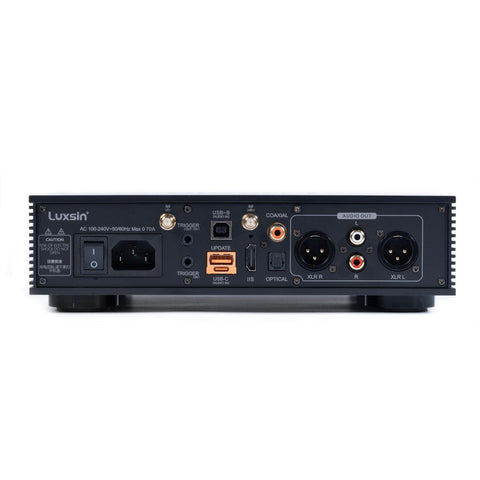

- Input / Output: USB-A Input
- For Local Upgrade: USB- B/C Input
- Support PCM 768kHz/32bit；DSD512(Native)
- IIS Input: Support PCM 768kHz/32bit；DSD512(Native)
- Coaxial / Optical Input: Support PCM 192kHz/24bit
- Trigger In / Out: Standard 3.5mm Connector
- Analog Output: RCA
- Digital Output: XLR
- Headphone Output: 6.35mm (Unbalanced), 4.4mm (Balanced), 4 pin XLR (Balanced)
- XLR Output Audio Characteristics: SNR: ≥129.5dB, THD+:＜-121.8dB @unweighted
- Crosstalk: ≥133dB (1kHz@200kΩ)
- Noise Floor: ＜1.1uVrms
- Output Level: 4.2Vrms (1kHz@200kΩ)
- RCA Output Audio Characteristics: SNR: ≥124.5dB, THD+: ＜-120dB @unweighted
- Crosstalk: ≥125dB (1kHz@100kΩ)
- Noise Floor: ＜1.3uVrms
- Output Level: 2.1Vrms (1kHz@100kΩ)
- Performance and Parameters of Balanced Headphone Output（4.4mm/XLR4）
- High Gain: L+R≥4840mW+4840mW（16Ω，THD+N＜1%)
- Output Impedance:＜1Ω
- THD+N: ＜-117dB(1kHz/0dB@32Ω)
- SNR: ≥123dB
- Crosstalk: ≥119dB (1kHz@32Ω)
- Performance and Parameters of Unbalanced Headphone Output（6.35mm）
- High Gain: L+R≥2900mW+2900mW（16Ω，THD+N＜1%)
- Output Impedance:＜1Ω
- THD+N: ＜-115dB(1kHz/0dB@32Ω)
- SNR: ≥121dB
- Dimensions 9.29×9.32× 2.51"
- Weight: 6.06lbs
PRODUCT INFORMATION:
Model: | Barcode: 6977843850014
