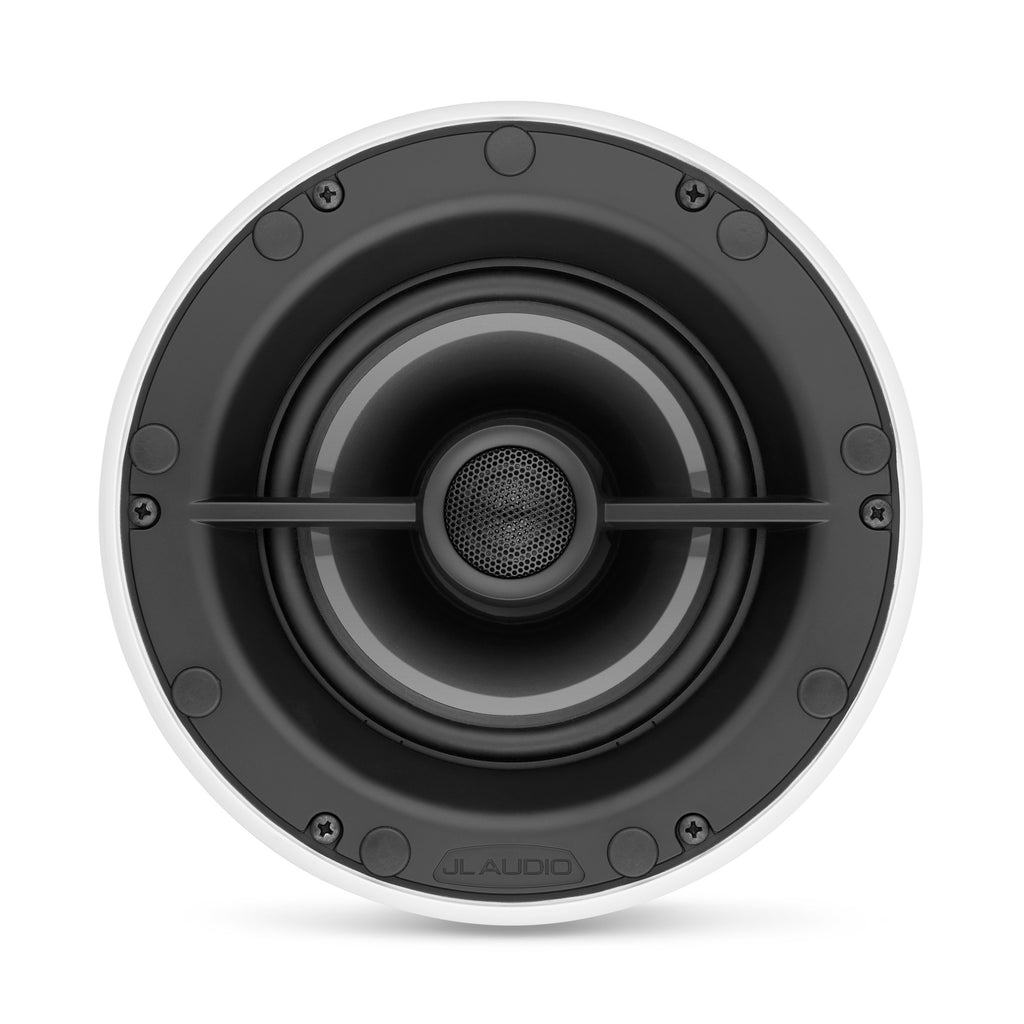

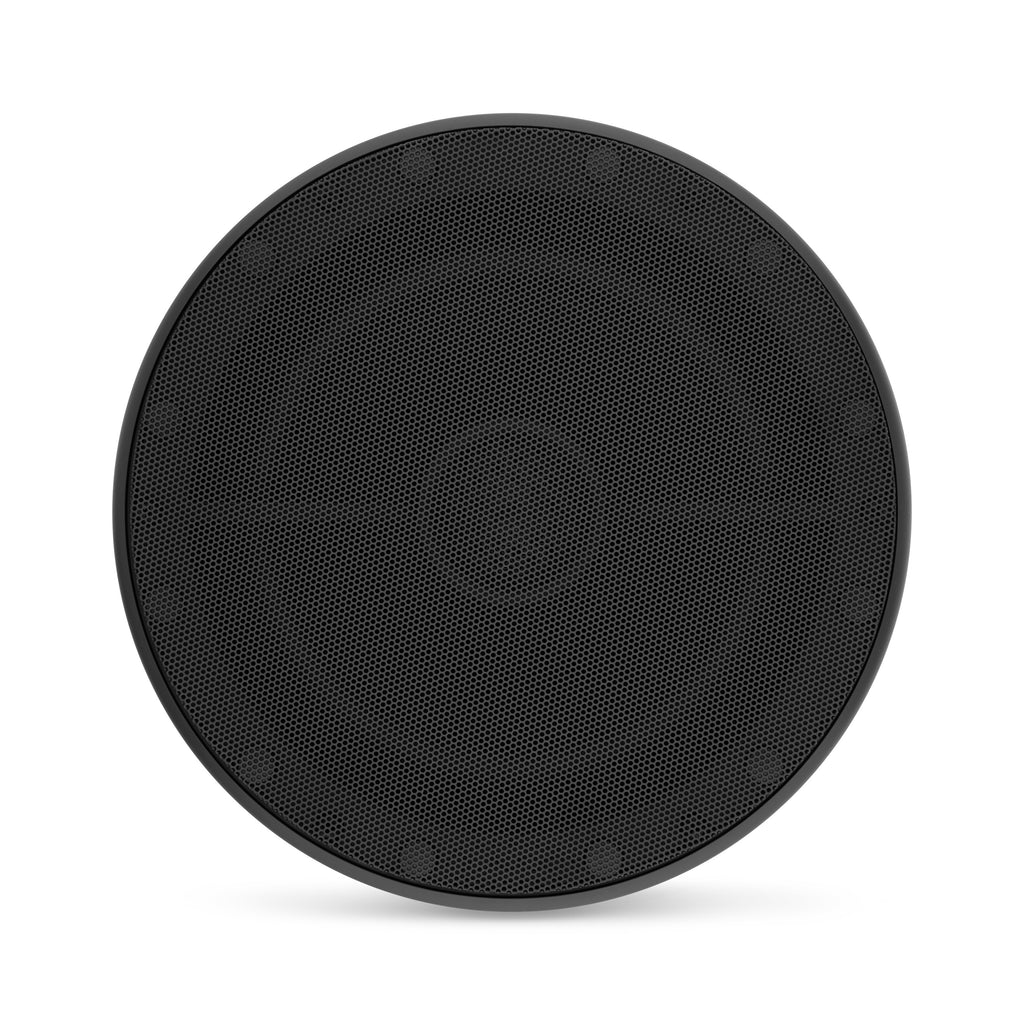

Pavilion™ in-ceiling speakers are designed for superior audio performance and durability in outdoor residential settings. They feature a low-profile mounting bezel, integrated tweeter bridge, and a flush-mount grille for a sleek, discreet look. The speakers use an innovative mounting system for easy installation in various ceiling materials, with a mesh grille that attaches magnetically and can be painted to match décor.
The speakers are equipped with a long excursion woofer for excellent power handling and a 0.8-inch silk dome tweeter designed to withstand outdoor conditions, delivering clear high frequencies at higher volumes. A multi-order, 2-way passive crossover is housed within the woofer, with a tweeter protection circuit to prevent damage. For optimal performance, amplifiers offering 60-120 W per channel are recommended, though the speakers can work with as little as 30 W. Pavilion™ loudspeakers are manufactured at JL Audio's Miramar, Florida facility, using globally sourced components.
Free standard shipping on all orders within the continental US.
CONTACT YOUR NEAREST SHOWROOM
FOR CONCIERGE EXPERIENCE
Timonium - 410.308.1650
Columbia - 410.381.2100
Gaithersburg - 301.296.6202
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
Pavilion™ in-ceiling speakers are designed for superior audio performance and durability in outdoor residential settings. They feature a low-profile mounting bezel, integrated tweeter bridge, and a flush-mount grille for a sleek, discreet look. The speakers use an innovative mounting system for easy installation in various ceiling materials, with a mesh grille that attaches magnetically and can be painted to match décor.
The speakers are equipped with a long excursion woofer for excellent power handling and a 0.8-inch silk dome tweeter designed to withstand outdoor conditions, delivering clear high frequencies at higher volumes. A multi-order, 2-way passive crossover is housed within the woofer, with a tweeter protection circuit to prevent damage. For optimal performance, amplifiers offering 60-120 W per channel are recommended, though the speakers can work with as little as 30 W. Pavilion™ loudspeakers are manufactured at JL Audio's Miramar, Florida facility, using globally sourced components.
FEATURES
Satin Black includes Black Trim Ring & Black Grille
Satin White includes White Trim Ring & White Grille
Sold individually
TECHNICAL SPECS
Continuous Power Handling (RMS): 60 W
Recommended Amplifier Power (RMS): 30 - 120 W / Ch.
Efficiency: 89.5 dB @ 1 W / 1 m
Nominal Impedance: 4 Ω
Frequency Response: 55 Hz - 25 KHz ± 3 dB
Frame Outer Diameter: 8.34 in / 212 mm
Bolt Hole Circle Diameter: 7.39 in / 188 mm
Frontal Grille Protrusion*: 0.37 in / 9 mm
Mounting Hole Diameter: 6.875 in / 175 mm
Mounting Depth: 3.87 in. / 98 mm
Net Weight: 3.21 lb / 1.45 kg
*Frontal grille protrusion measured from mounting surface
