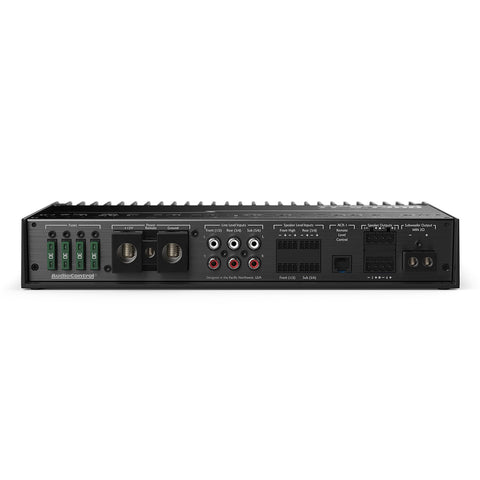

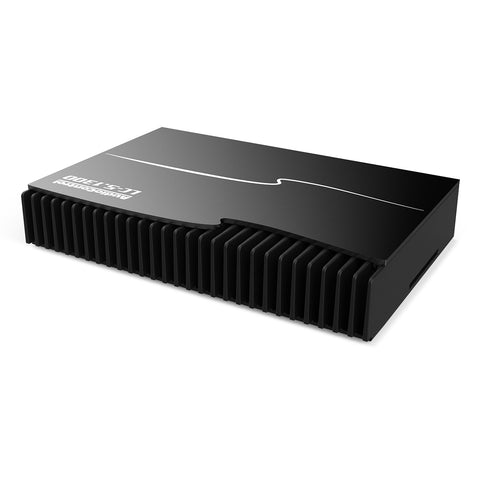

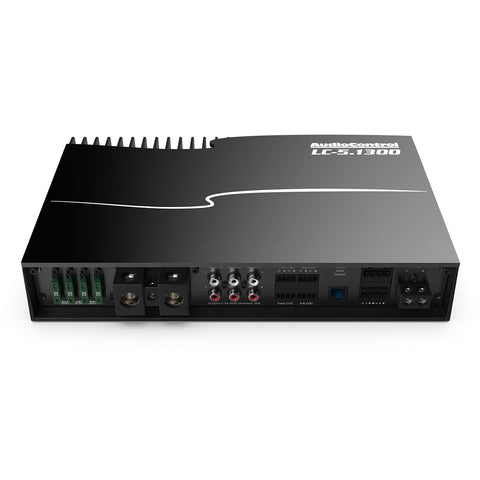

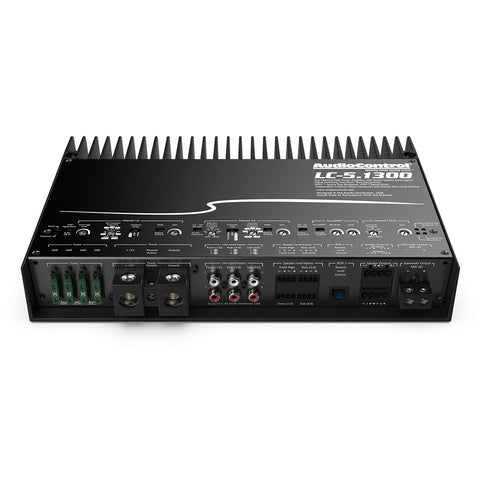

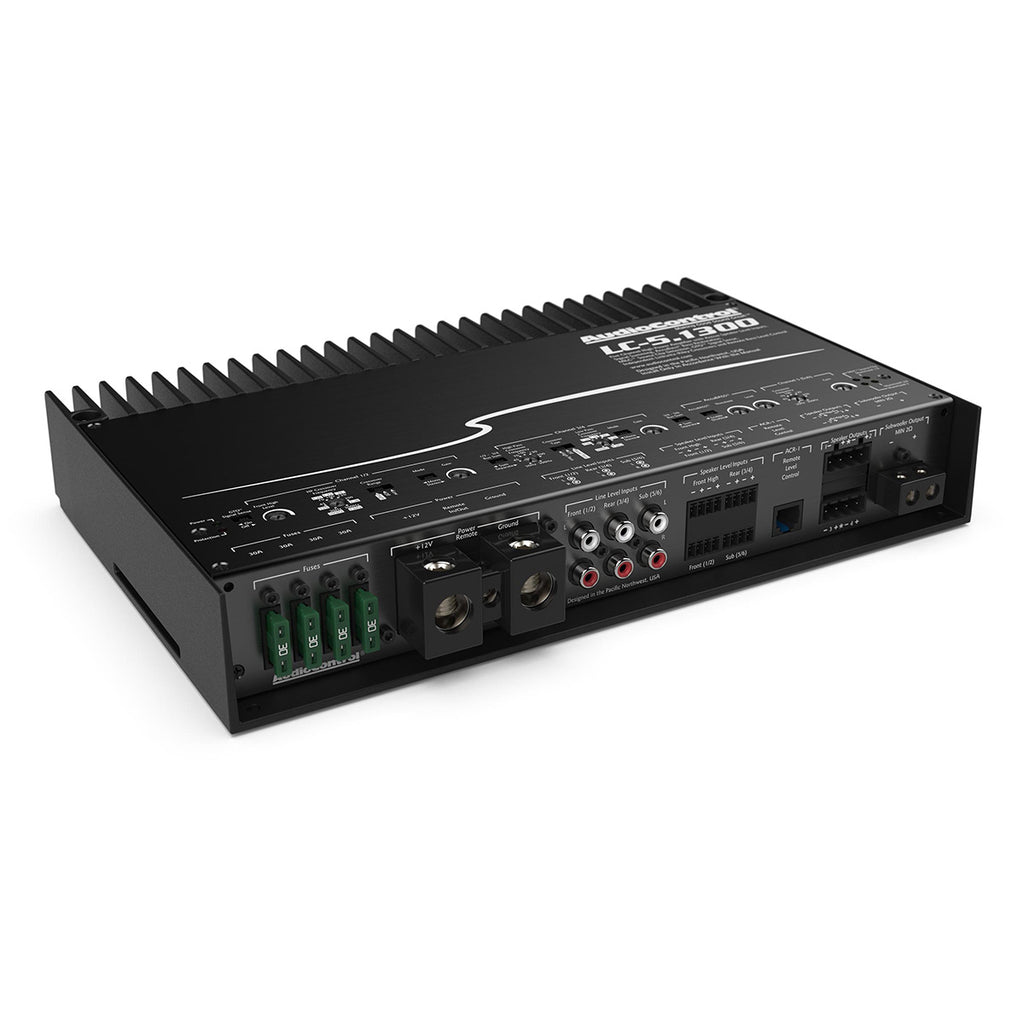

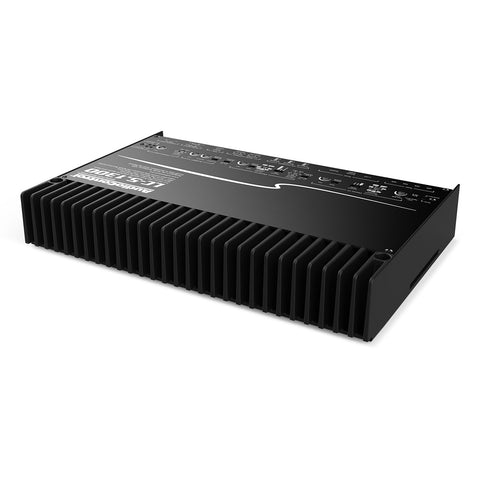

AudioControl LC-5.1300 High-Power Multi-Channel Amplifer with Accubass
$899.00
Regular price
$1,369.00
Save
$470.00
(34%)
FREE SHIPPING
Free standard shipping on all orders within the continental US.
$ {{amount}}
Dedicated Support from Start to Finish
Concierge-Level Experience tailored to your needs
Assistance with Troubleshooting and Product Insights
Expert help for Product Set-Up
Free Shipping on all orders
DESCRIPTION
High-Power Multi-Channel Amplifier with Accubass®
The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line-level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.
Features:
Configurable as 5 or 3 channel amplifier
4 x 200 watts + 1 x 500 watts @ 2 ohms
4 x 100 watts + 1 x 300 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILC™ Maximum Input Level Control (Patent Pending)
Summable active speaker-level inputs (8 channels) for OEM integration
6 preamp inputs
PFM Subsonic Filter
Optional ACR-1 assignable remote control
Solid One-Piece Aluminum Chassis
SPECIFICATIONS
Inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms
Outputs
Rated Continuous (RMS) Power at 14.4V:
4Ω – 100 W x 4 + 300 W x 1
2Ω – 200 W x 4 + 500 W x 1
Bridged 4Ω – 400 W
Performance
Frequency Response: 20 Hz – 22 kHz
Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Minimum Power / Ground Wire Gauge: 3 AWG wire
Fuse Rating: 4 x 30 A
Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
Weight & Dimensions
Dimensions (W x H x D): 12.0" x 2.1" x 8.0"
Weight: 7.2lbs. (3.3kg)
DESCRIPTION
High-Power Multi-Channel Amplifier with Accubass®
The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line-level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.
Features:
Configurable as 5 or 3 channel amplifier
4 x 200 watts + 1 x 500 watts @ 2 ohms
4 x 100 watts + 1 x 300 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILC™ Maximum Input Level Control (Patent Pending)
