DESCRIPTION

Goldring introduces its flagship E Series moving magnet cartridge: E4. Designed as the ultimate upgrade for any modern budget or midrange turntable, E4 represents the pinnacle of E Series engineering and performance.

E4 is designed to be compatible with all medium-to-high-mass tonearms of the type found on the majority of budget to midrange turntables. And because it’s constructed using the same high-quality core as the other E Series cartridges in the range, E4 is ideal both for those who wish to upgrade an obsolete cartridge in its entirety or those who want to boost the performance of their existing E Series cartridge by replacing the stylus.

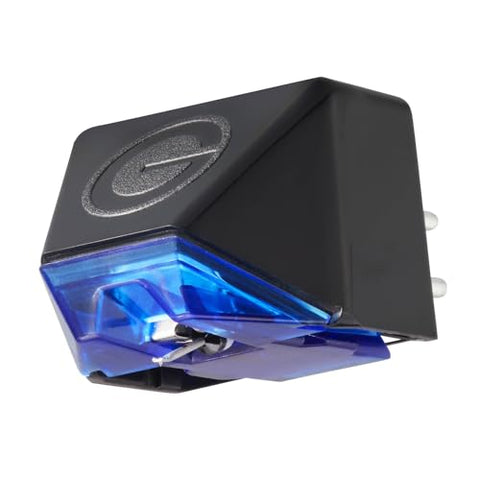

Goldring E4 Moving Magnet Cartridge

  • Sale
  • $ 299
  • FREE SHIPPING

Free standard shipping on all orders within the continental US.

Dedicated Support from Start to Finish

  • Concierge-Level Experience tailored to your needs
  • Assistance with Troubleshooting and Product Insights
  • Expert help for Product Set-Up
  • Fast & Free Shipping on all orders
DESCRIPTION

Goldring introduces its flagship E Series moving magnet cartridge: E4. Designed as the ultimate upgrade for any modern budget or midrange turntable, E4 represents the pinnacle of E Series engineering and performance.

E4 is designed to be compatible with all medium-to-high-mass tonearms of the type found on the majority of budget to midrange turntables. And because it’s constructed using the same high-quality core as the other E Series cartridges in the range, E4 is ideal both for those who wish to upgrade an obsolete cartridge in its entirety or those who want to boost the performance of their existing E Series cartridge by replacing the stylus.

FEATURES
  • New super-elliptical nude diamond stylus features lower effective tip mass, improved rigidity and better high frequency detail retrieval than ‘bonded’ elliptical alternatives.
  • The lightweight and superior stiffness of the hollow aluminium cantilever allows the stylus to trace medium-to-high frequencies with greater accuracy.
  • Magnetic Duplex Technology™ allows a more accurate transcription of the stereo groove which results in a more accurate soundstage
  • Expert adjustment facility: Unlike most designs, E4 allows micro-adjustments to be made during the production process, ensuring each cartridge leaves the Goldring factory with optimised channel balance and crosstalk settings
TECHNICAL SPECS
  • Frequency Range: 20 Hz – 20 kHz
  • Channel Balance: < 1.5 dB @ 1 kHz
  • Channel Separation: > 20 dB @ 1 kHz
  • Sensitivity: 3.5 mV (1 kHz @ 5 cm/s)
  • Static: Complianceb20 mm/N
  • Vertical Tracking Angle: 20°
  • Stylus Radius: 7.6 micron (0.3 x 0.7 mil)
  • Stylus Type: Nude eliptical
  • Load Resistance: 47 kΩLoad Capacitance 100 – 200 pF
  • Internal Inductance: 400 mH
  • Internal Resistance: 410 Ω
  • Cartridge Mass: 6.9 g
  • Fixing Centre: 12.7 mm (0.5 in)
  • Playing Weight: 1.5 – 2.5 g (1.75 g recommended)
